Interval Protocol drills are designed to test speed endurance and intermittent performance.
With at least two timing gates per lane, the athlete moves from Gate A to Gate B (in either direction) in a Fixed Recovery or Fixed Duration format for the set number of reps indicated.
Suitable for SmartSpeed Pro and SmartSpeed Plus.
SmartSpeed Plus
Set up an Interval Protocol drill in SmartSpeed Plus
The below steps outline only the steps relevant to the Interval Protocol drill in the SmartSpeed Plus app.
Having trouble connecting gates and setting up a session? Read our step-by-step guide on setting up and running a drill in SmartSpeed Plus.
Total gates | Minimum 2 gates per track |

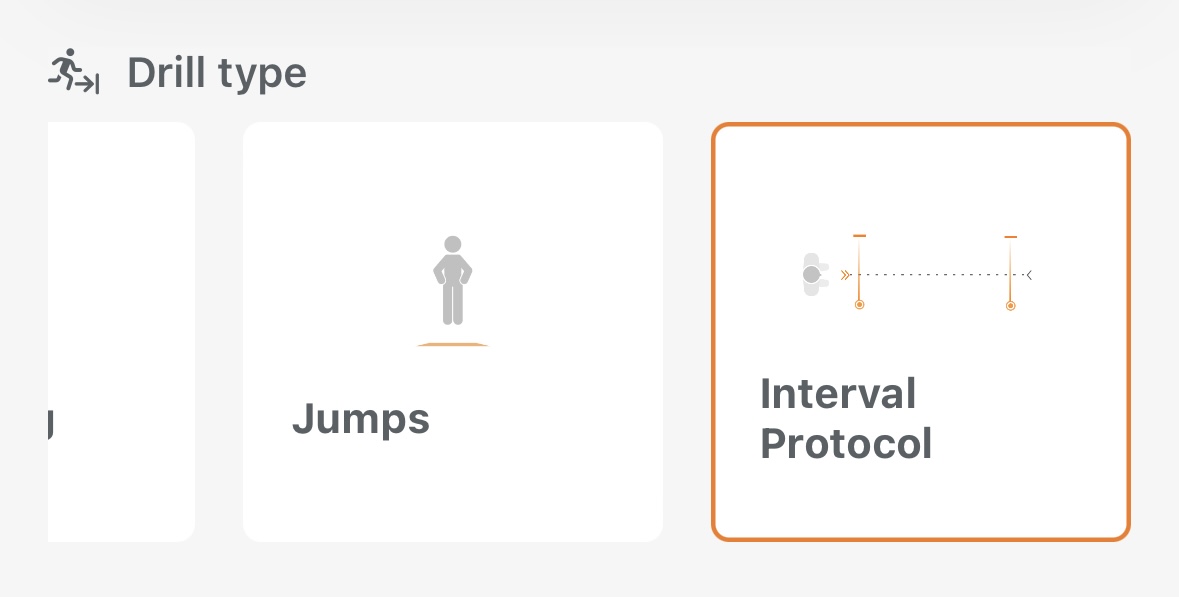

Drill type |
Interval Protocol |
Drill name | 30m (30yd) Repeat Sprint Ability Test User-created custom Interval Protocol drill |
Reps | Increase + or decrease - to determine the number of times the drill will be repeated by an athlete in a single trial. |
Interval Type | Fixed Recovery (set amount of recovery time) or Fixed Duration (set amount of time to complete each rep, including recovery). |
Interval Type - Duration | Increase + or decrease - to determine the length of recovery time after each rep. |
Run the drill
Click Ready to begin your session. You will see the name of your first athlete appear both in the SmartSpeed Plus app, as well as on the LED display of the first timing gate.
After breaking the beam of the first gate, their time will begin.

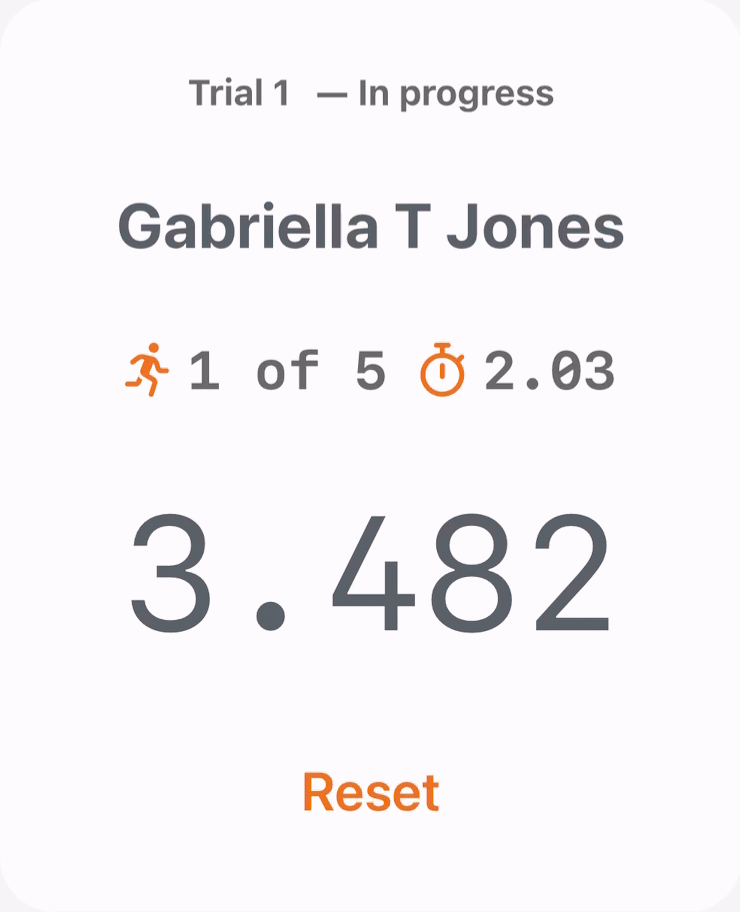

If performing a Fixed Duration drill, this timer will begin counting down in the app immediately. If performing Fixed Recovery, this timer will begin counting down once they have broken the final gate in the drill.
The athlete will see all timing gates change colour - from red to blue to green - to signify that they can begin their next rep.
Countdown in app | Countdown on unit |
Each rep other than the first can be started from either direction (i.e. first gate to last gate, last gate to first gate).
Once the final rep is complete, the next athlete can complete their trial.
If you have trial validity enabled, this will only appear at the end of each trial, not the end of each rep within the trial.
SmartSpeed Pro
Drill Options:
- Multi Lane - minimum 2 timing gates per lane
- Fixed Duration - duration of intervals are fixed. Rest period is included in the interval
- Fixed Recovery - rest periods of intervals are fixed. It starts when athlete finishes one interval
To setup in SmartSpeed app:
- Log in to SmartSpeed app
- Select Start Session
- Select Drill: Interval Protocol
- Select My Drill: Standard (unless using a custom drill created in SmartSpeed Online)
- Select your Team
- Select Mode: Automatic (unless using SmartScan RFID reader)
- Confirm Re-arm: 500 ms. The time it takes for gates to reset for the next athlete - adjust as required
- Name session as required for your reporting
- Select Ready
- Set the timing gate order. Walk through the timing gates in the order the athlete will pass through.
- Select your Type
- Select your Duration. The amount of time the drill should last for each athlete
- Select your Repetitions. The number of repetitions of the drill each athlete will perform
- [Fixed Duration] Select your Events. The number of instances the athlete will break a beam for the drill
- [Fixed Duration] Select Start Type: Standard
- Select your Tag Result preference. If you select On, you then select the amount of time to tag a result valid or invalid
- Select the Tick Icon
- Run through the drill as configured
