ForceFrame Fold (v5) Assembly

Looking for self-paced, educational video tutorials to help you master VALD technology? Visit VALD Academy

When you first receive your ForceFrame, some assembly will be required. Please use the below guide to assist with assembling your new ForceFrame Fold system.

What's in the box?

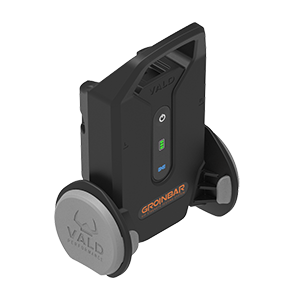

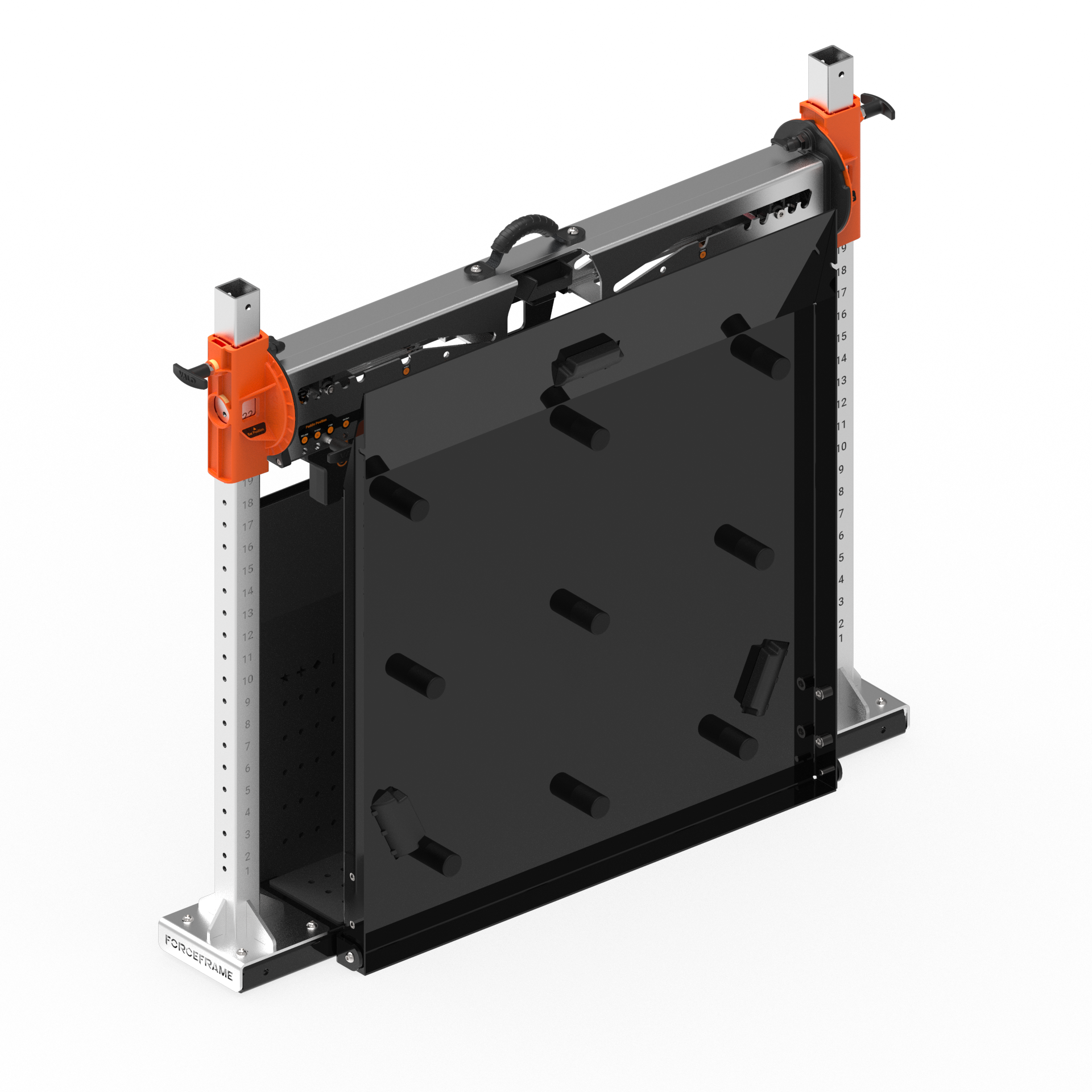

Frame and crossbar			Portable head unit

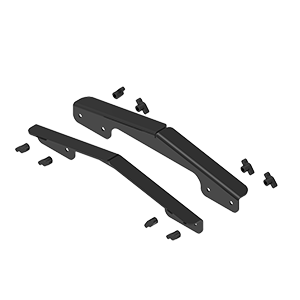

Top rail		Frame locking plates +  wing bolts		Shoulder mount

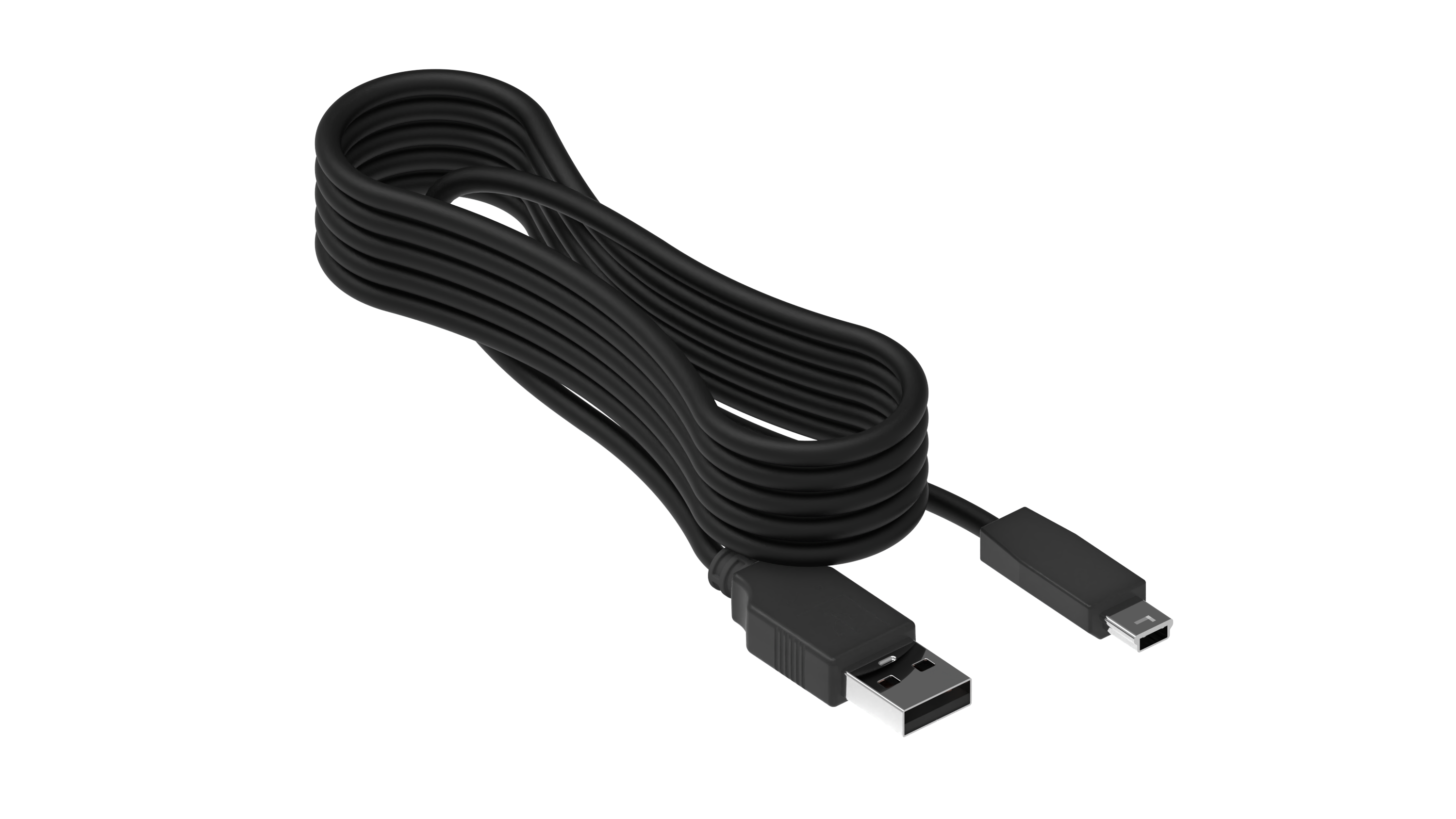

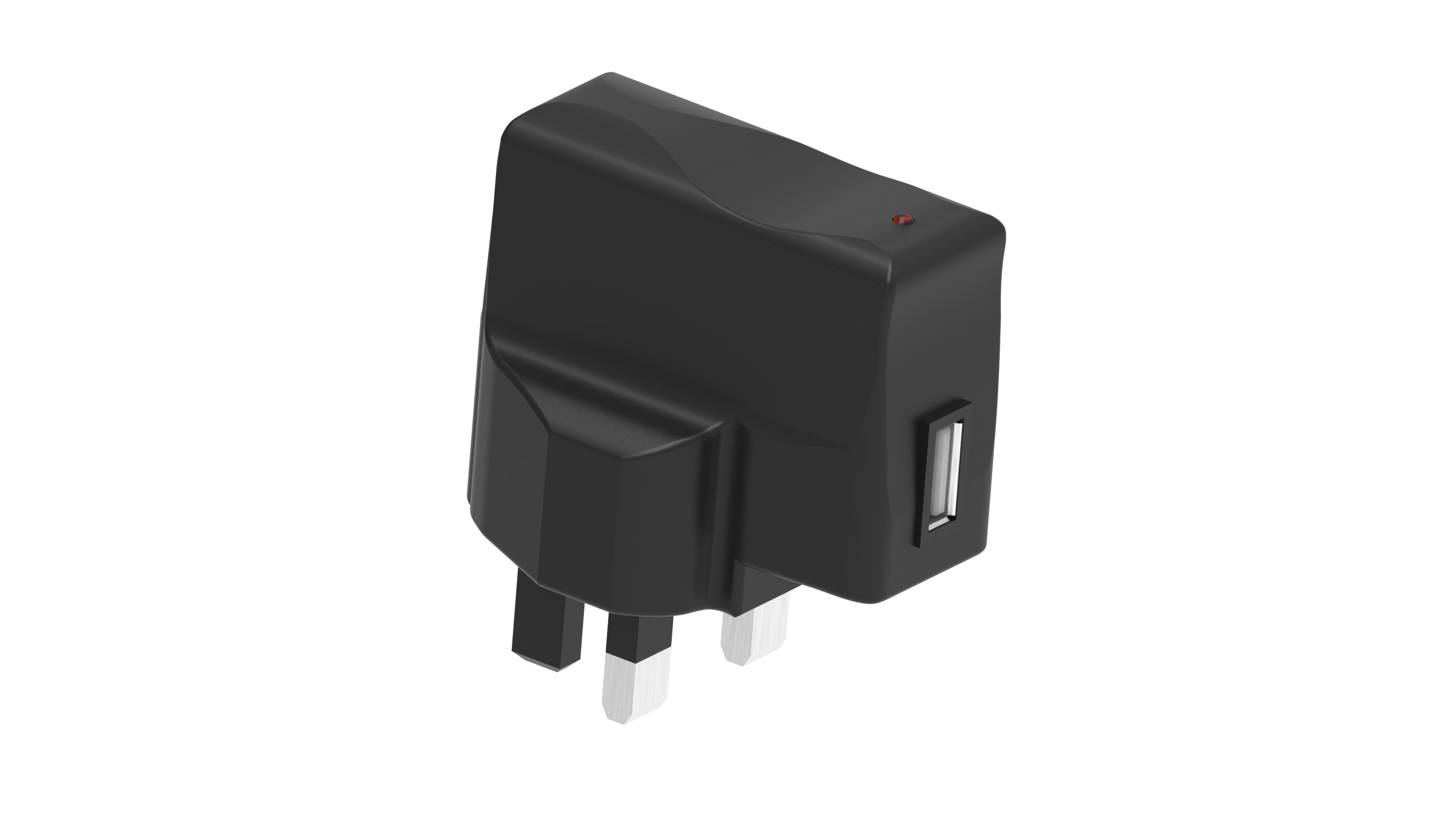

Mini USB cable		Wall power adapter		Hex wrenches

Assembling the ForceFrame

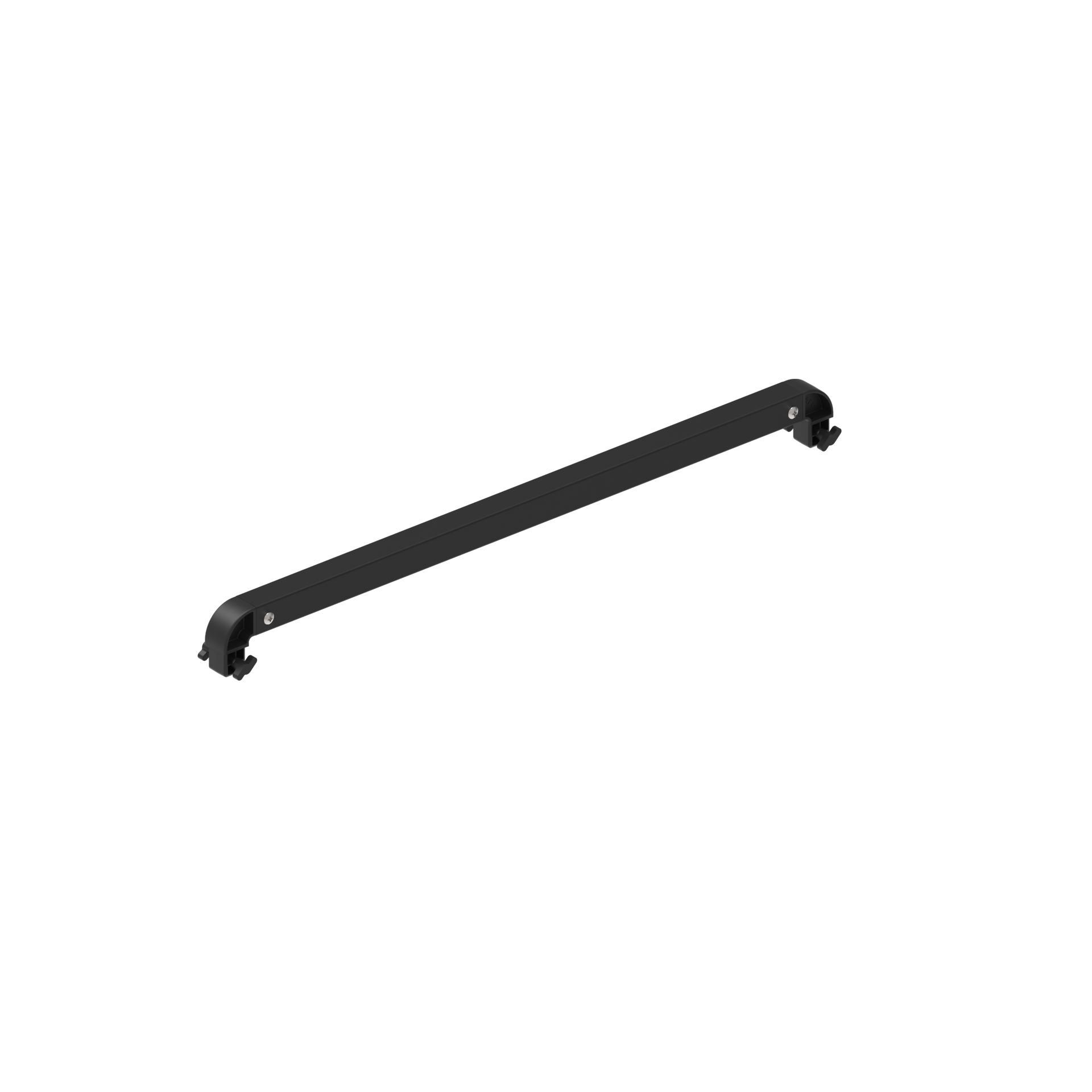

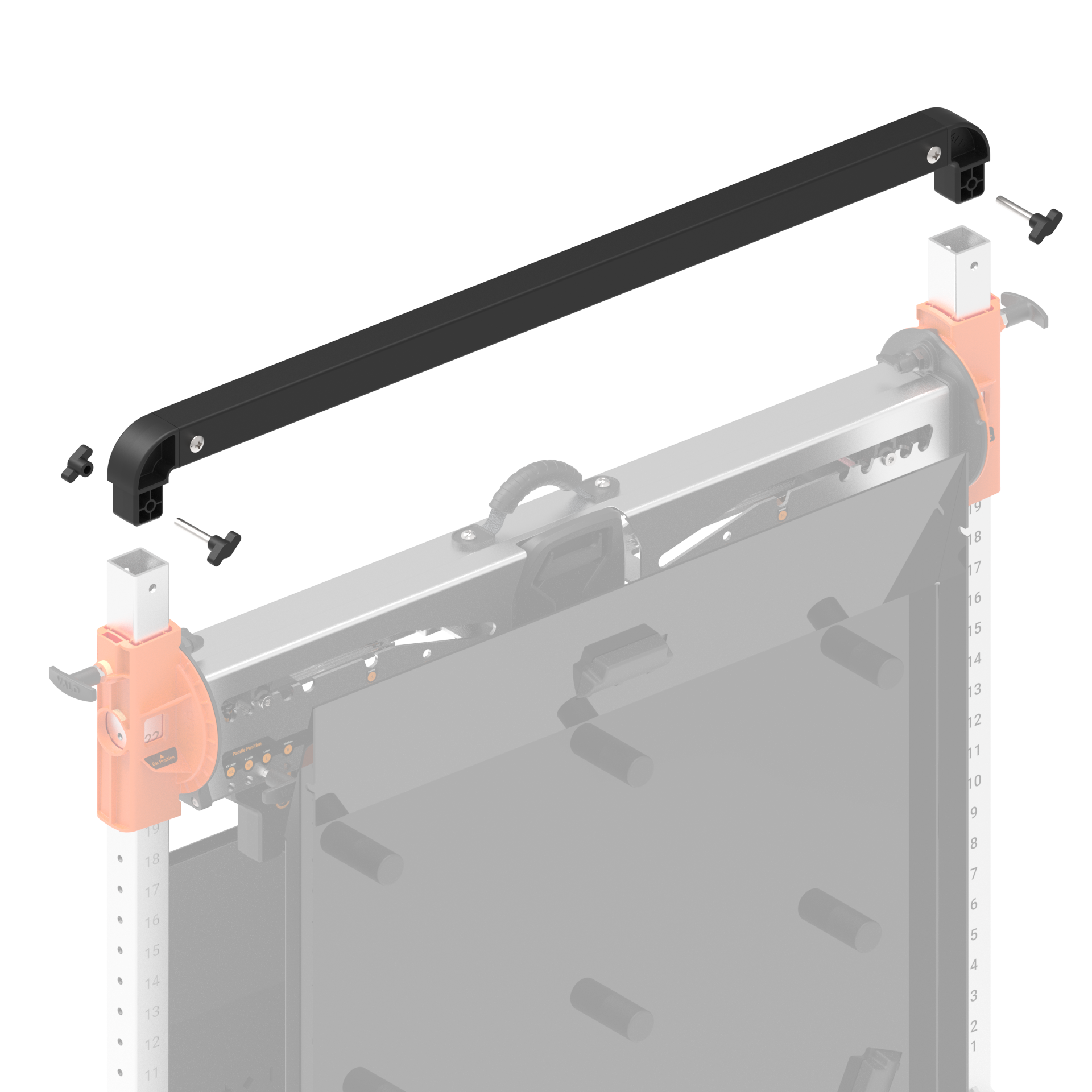

1. Attach the top rail using the wing bolts provided.

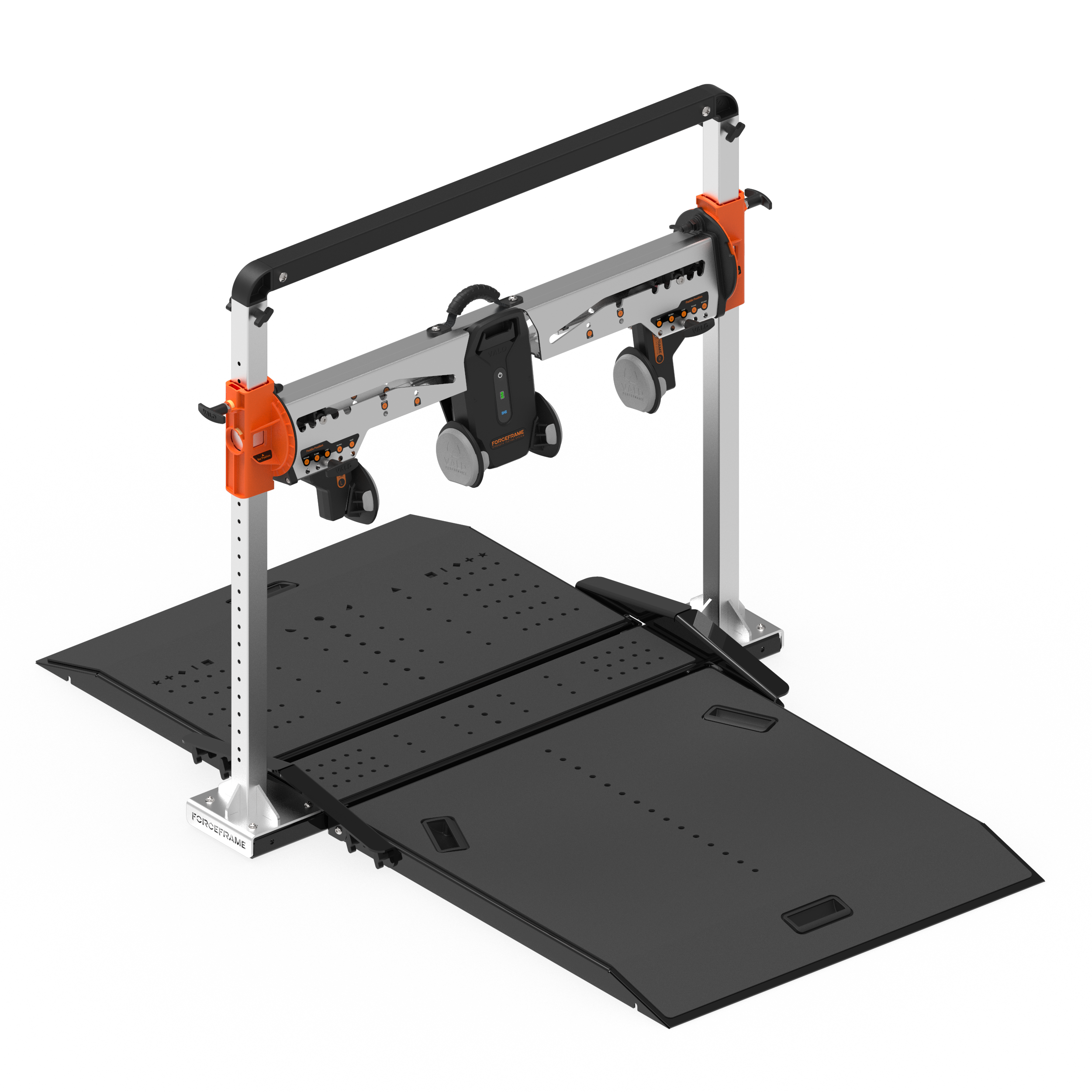

2. After ensuring you have at least a 1-meter radius of clear space around your ForceFrame, fold down the base plates on both sides.

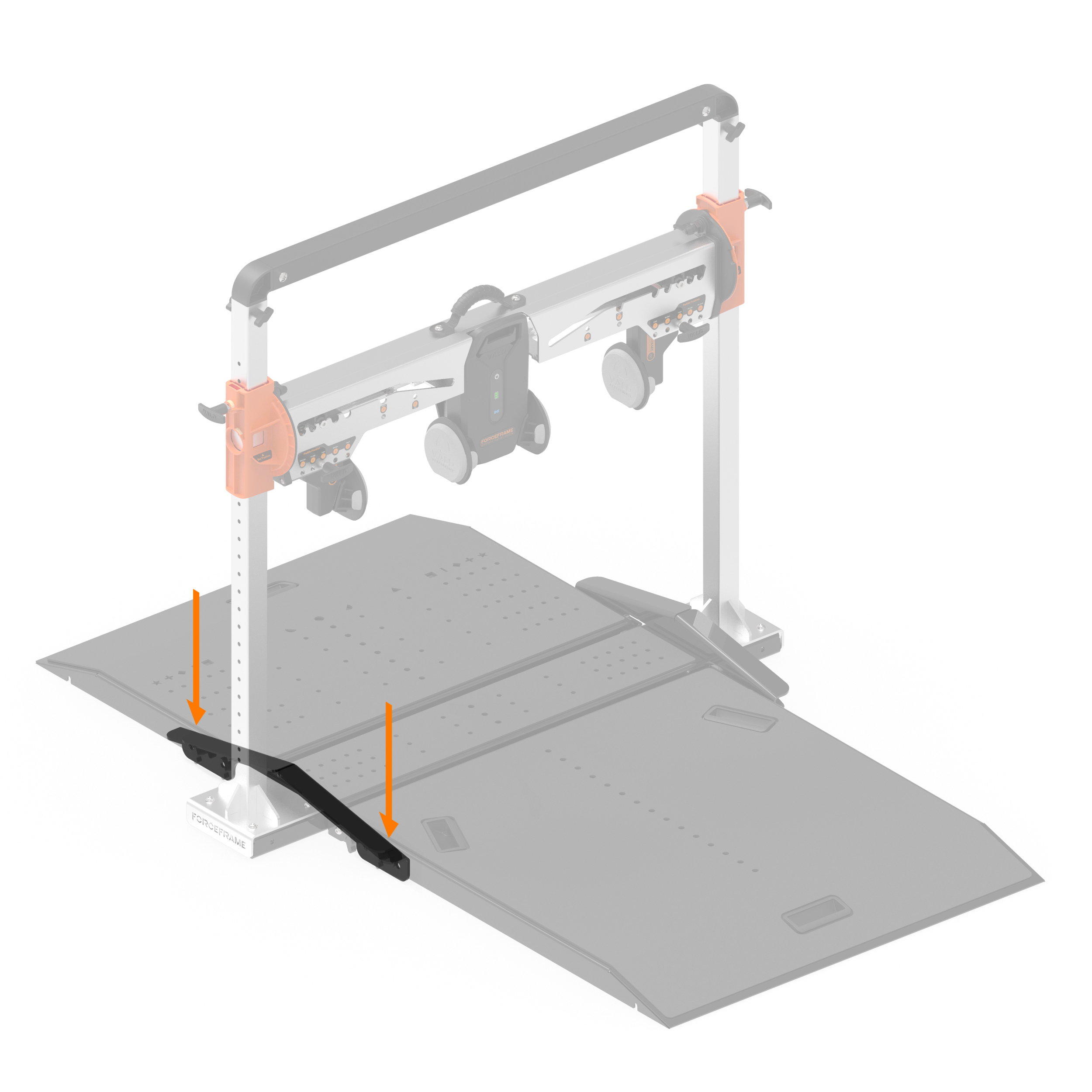

3. Attach the frame locking plates to either side using the wing bolts provided. These lock the ForceFrame base plate in a stable position.

You are now ready to begin testing with your ForceFrame Fold.

Optionally:

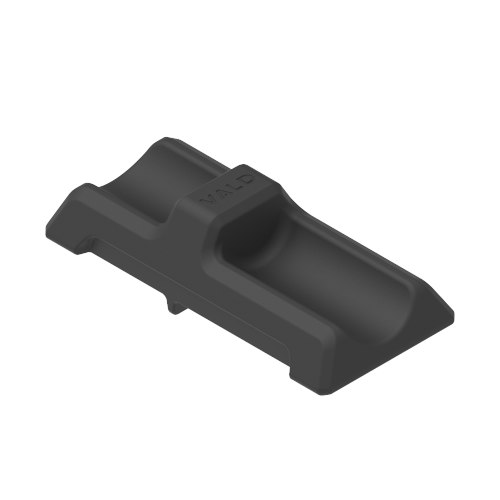

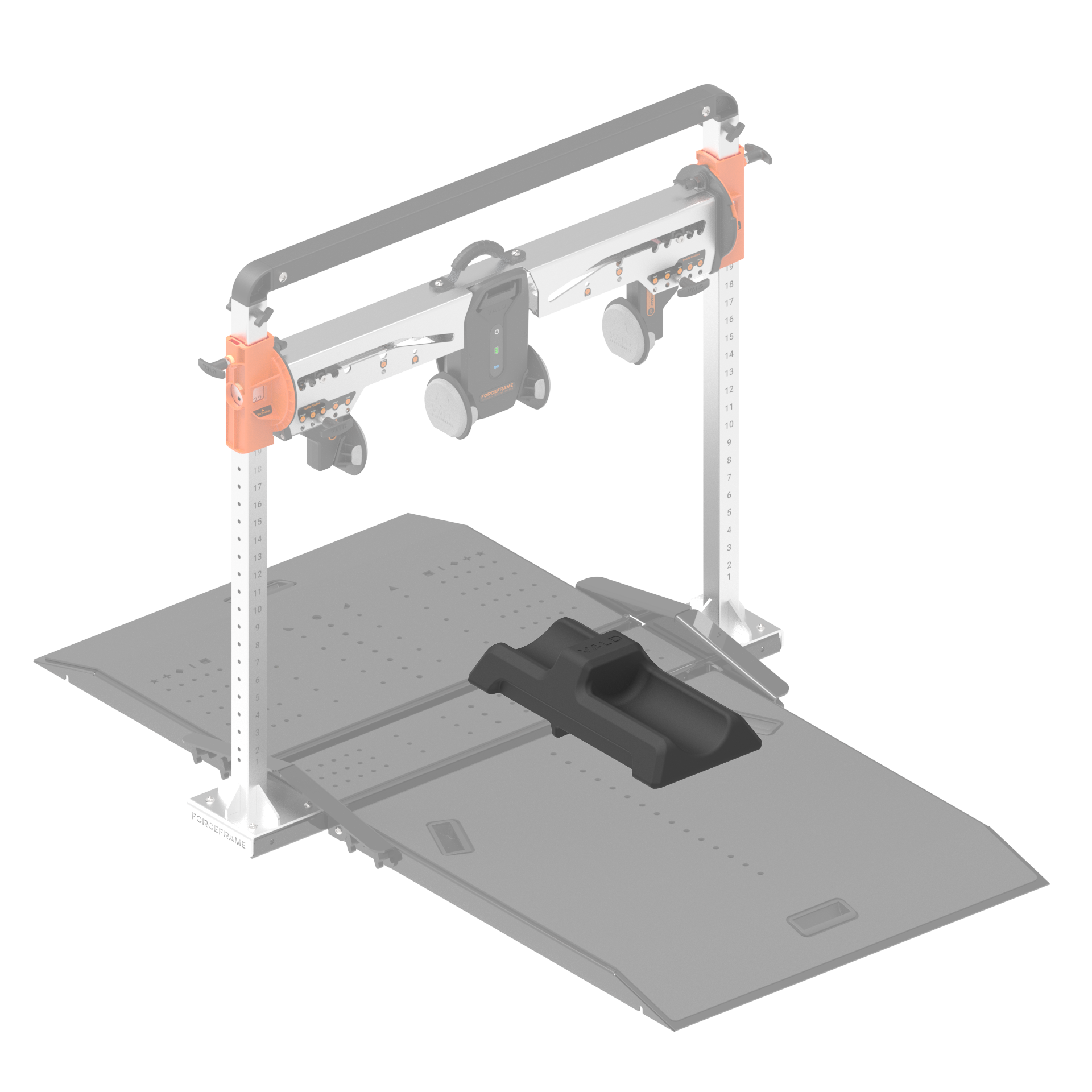

→  Fit the shoulder mount into the grooves on the base plate to support the arm during shoulder internal/external rotation testing.

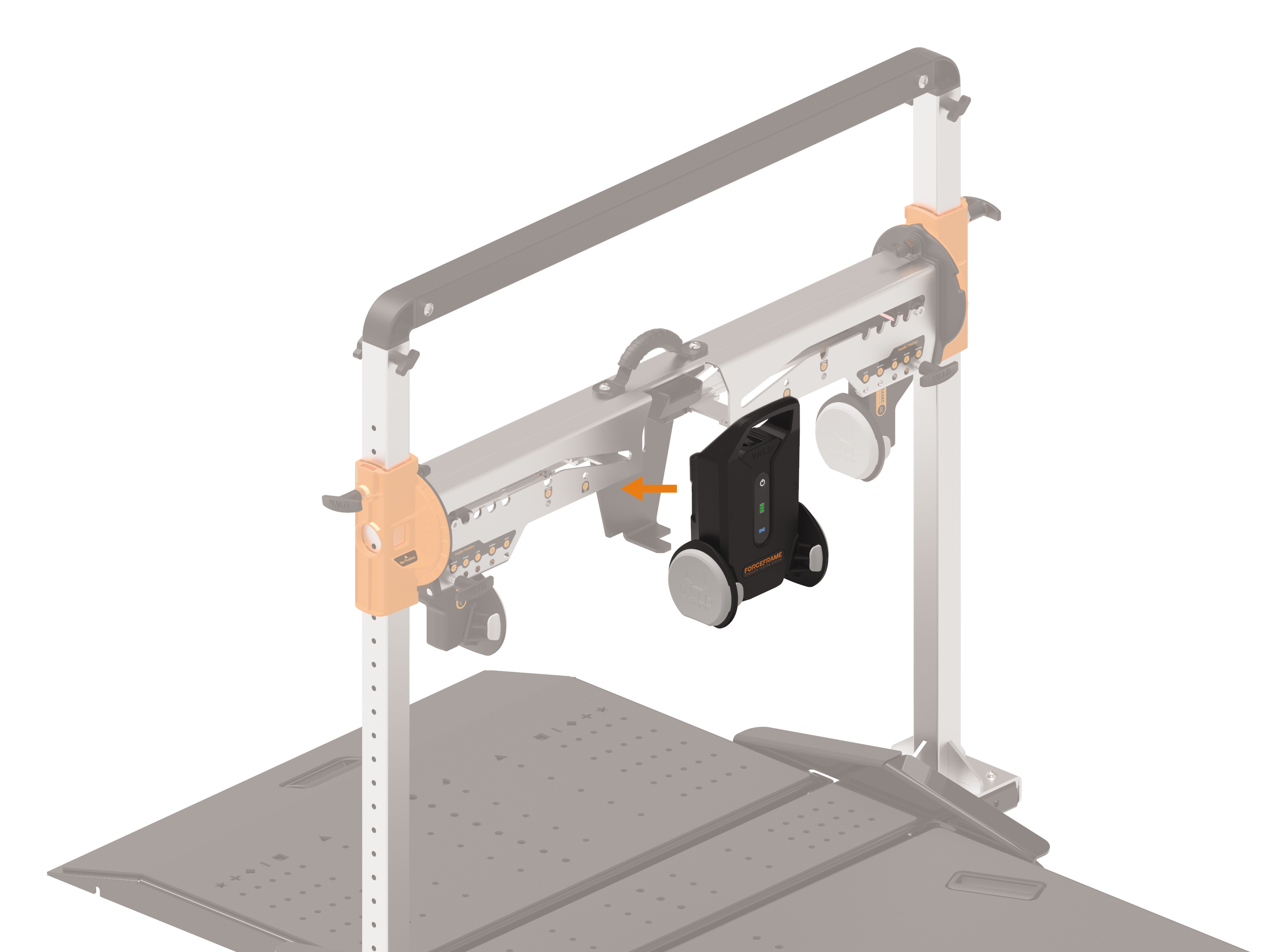

→  The portable head unit can be detached from the crossbar for groin strength testing using the head unit only.
