Adjust your ForceFrame hardware for a test

When testing with ForceFrame, you can adjust your crossbar and outer paddles for the specific test you wish to perform.

You can adjust:

Our ForceFrame Test Protocols have recommended crossbar rotation and paddle positions for guidance.

Configuration steps may vary depending on your ForceFrame model. See below for detailed instructions.

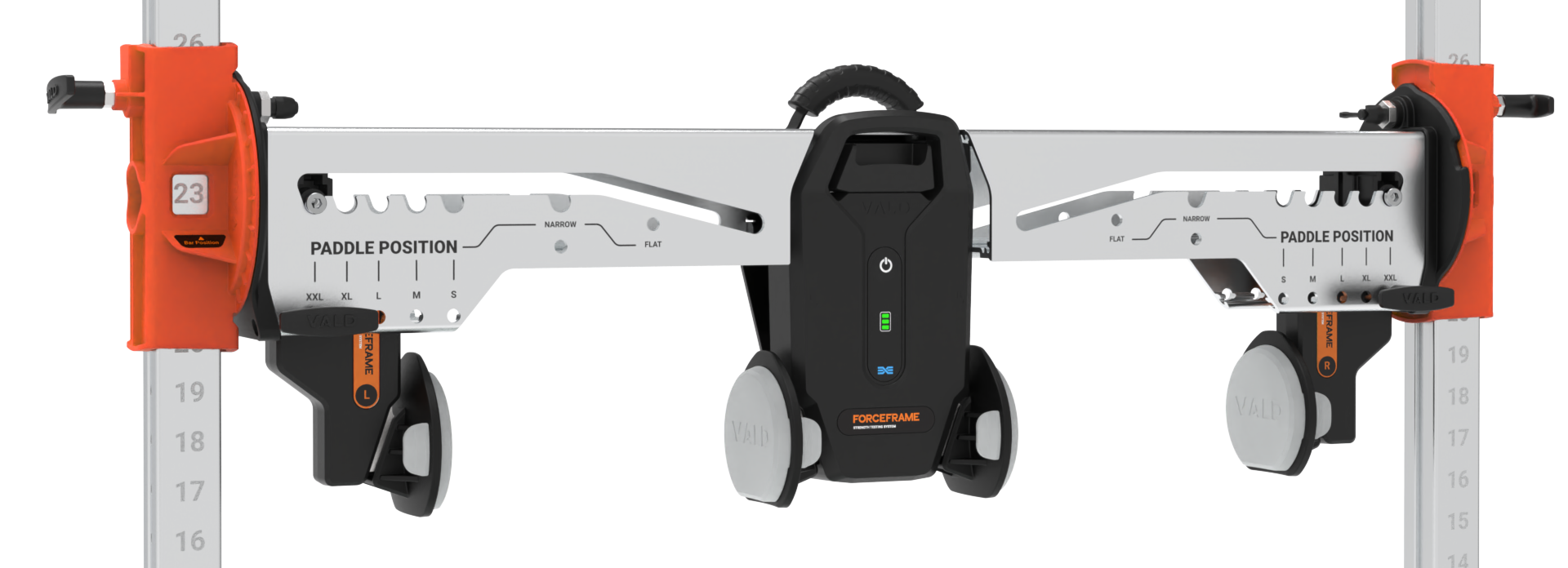

FF_cv2_crossbar render.png

Expand to see steps

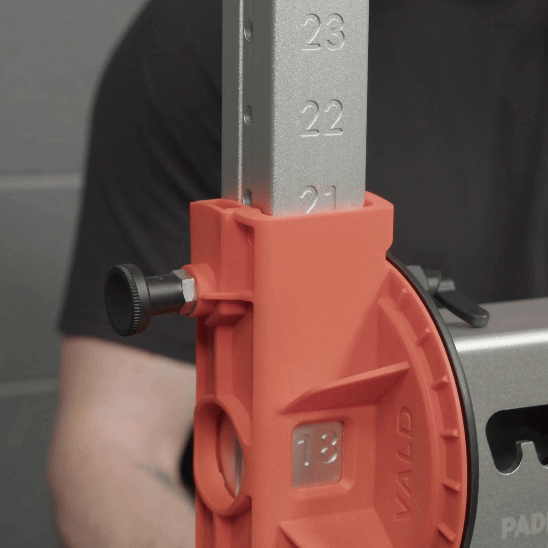

Push the orange post slider locks outward towards each post to unlock the crossbar position.
While still holding the post slider locks in, move the crossbar to your new desired position.
Release to lock into place.

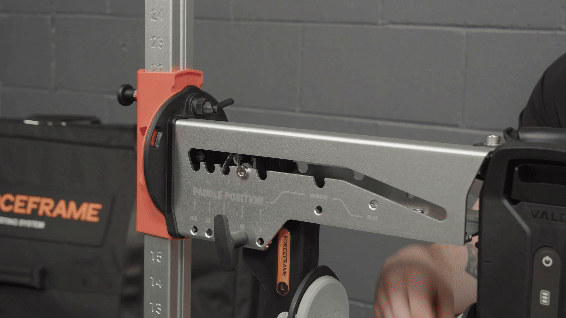

Pinch the crossbar rotational handle at the top of the crossbar to unlock crossbar rotation.
While still holding the handle, rotate the crossbar to your new desired position.
Release to lock into place.

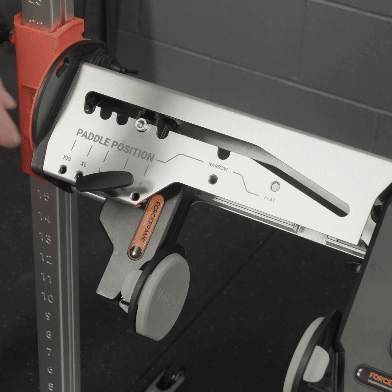

Pinch the orange handle on the outer paddle to unlock the paddle position.
While still holding the handle in, push the paddle to your new desired position.
Release to lock into place.

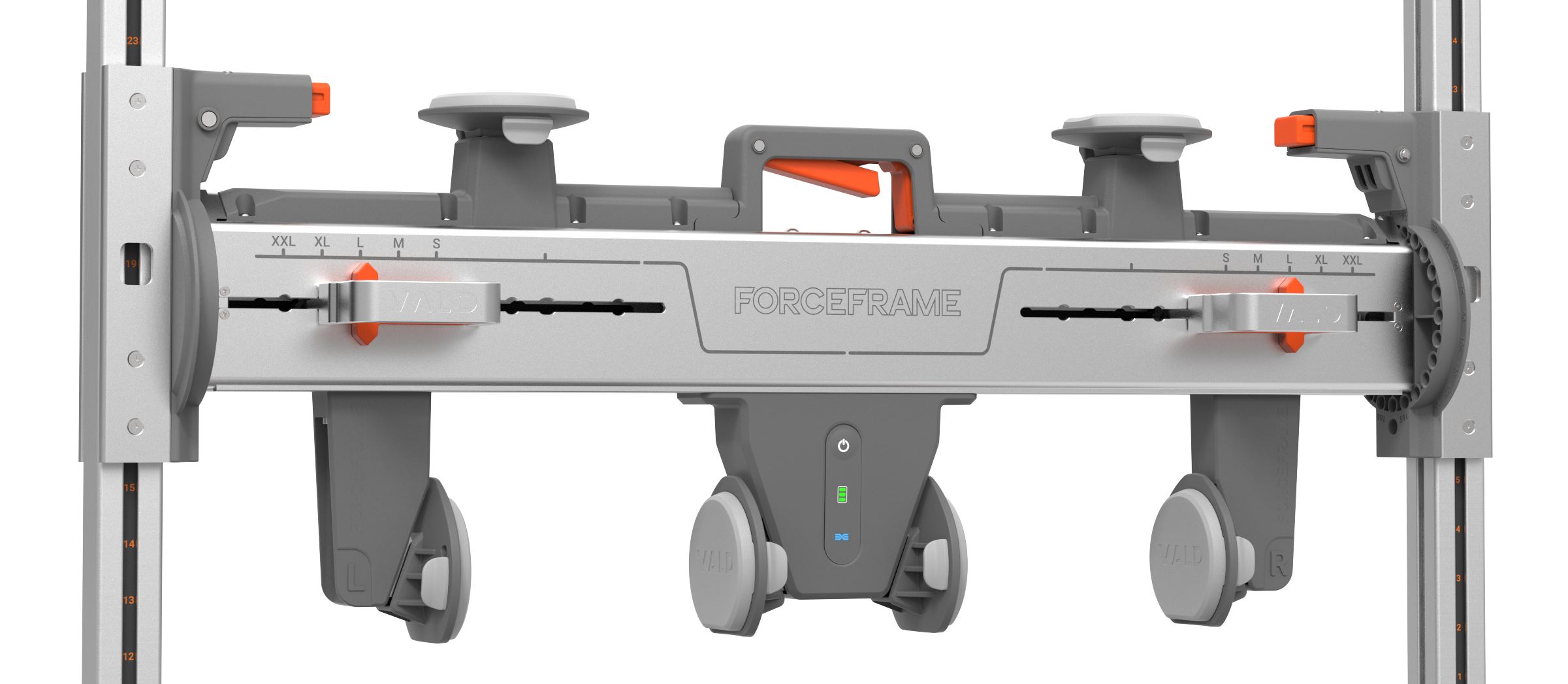

FF_cv1_crossbar render.png

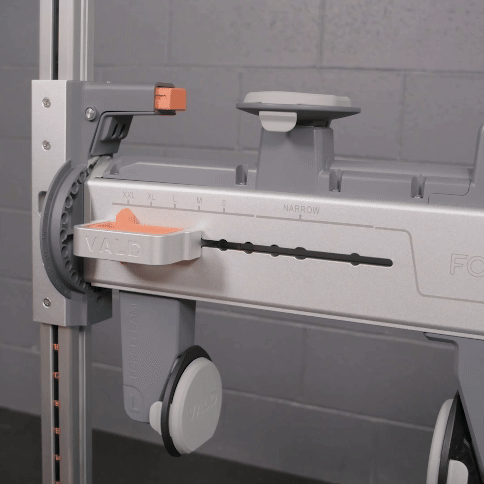

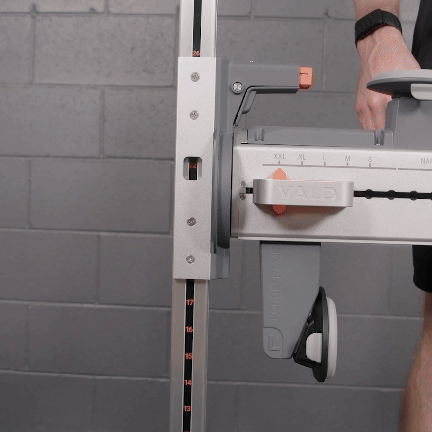

Pull out the black indexing plungers on either side of the crossbar to unlock the crossbar position.
While still pulling outward, move the crossbar to your new desired position.
Release to lock into place.

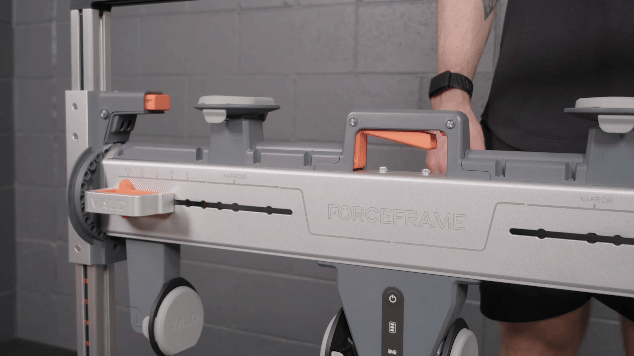

Flip the black toggles on the top of the crossbar just inside of each post to unlock crossbar rotation.
Rotate the crossbar to your new desired position.
Flip the black toggles back to their original orientation to lock into place.
