The SmartSpeed Dash system will be delivered with the following components:

These items are assembled to create a singular timing gate. You can purchase any number of gates with your subscription.

The SmartSpeed Dash timing unit includes a speaker, used to provide an audible signal to athletes and coaches.

The timing unit also includes two light beams:

Photocell beam - this is what is used with the reflector to detect objects and has a wider, weaker appearance.
Laser aiming beam - this is purely an aid in aligning the timing unit with a reflector, as it is significantly more visible and pointed than the photocell beam.

When turned on, the timing unit will produce a loud audible beep until it is aligned with a reflector.

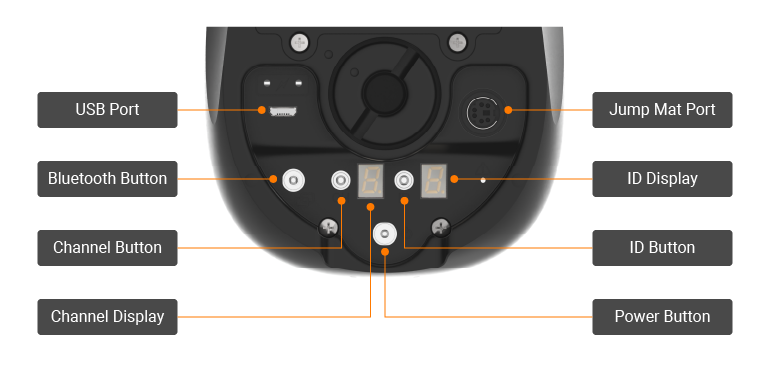

SS Dash Labels.png

Power Button
Action	Unit Response	Purpose
Press once and release	LED Display lights up, power indicator LED turns red, buzzer may sound if not aligned with reflector	Turn unit on
Press and hold for 2 seconds	All LEDs turn off	Turn unit off
Press and hold for 10 seconds	Power indicator LED on back unit turns on	Reset the unit

Bluetooth Button
Action	Unit Response	Purpose
Press and hold for 3 seconds Legacy units only (not BLE)	Button will turn green and unit will emit a triple beep	Initial pairing of command unit to your device
No action	Button flashing blue	Waiting for Bluetooth connection
No action	Button solid blue	Unit is connected to Bluetooth

Channel Button / ID Button
Action	Unit Response	Purpose
Press once and release	Displays current channel and ID settings	Check current unit settings
Press and hold for 3 seconds	Unit will emit a triple beep, channel and ID displays will begin flashing	Enter channel or ID setting mode
Press once and release when display is flashing	Channel or ID display number will change	Change channel or ID
