ForceDecks ISO Squat Rack Assembly Guide

The ISO Squat Rack is an accessory for your ForceDecks plates that is specifically designed to perform test types such as an Isometric Mid-Thigh Pull, Isometric Squat, and Isometric Calf Raise.

Components

You will receive the following parts for your ISO Squat Rack.

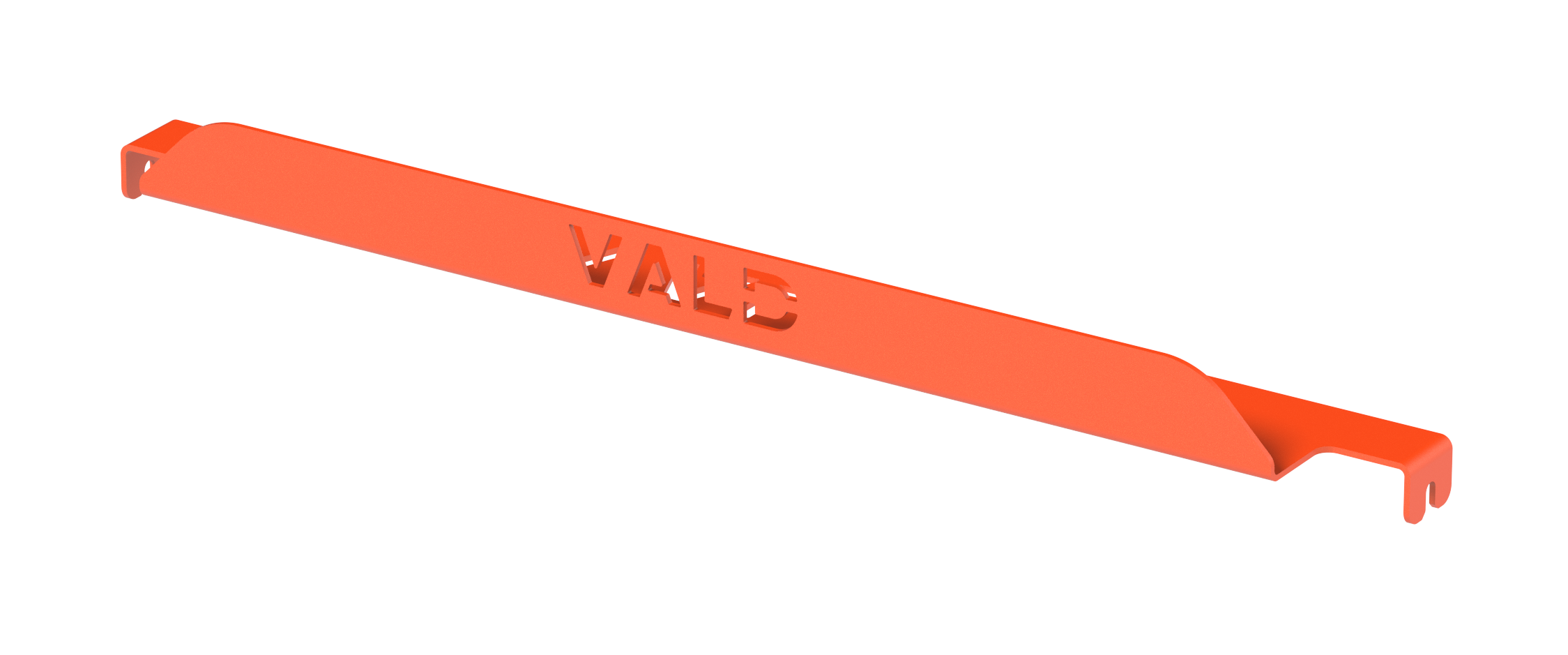

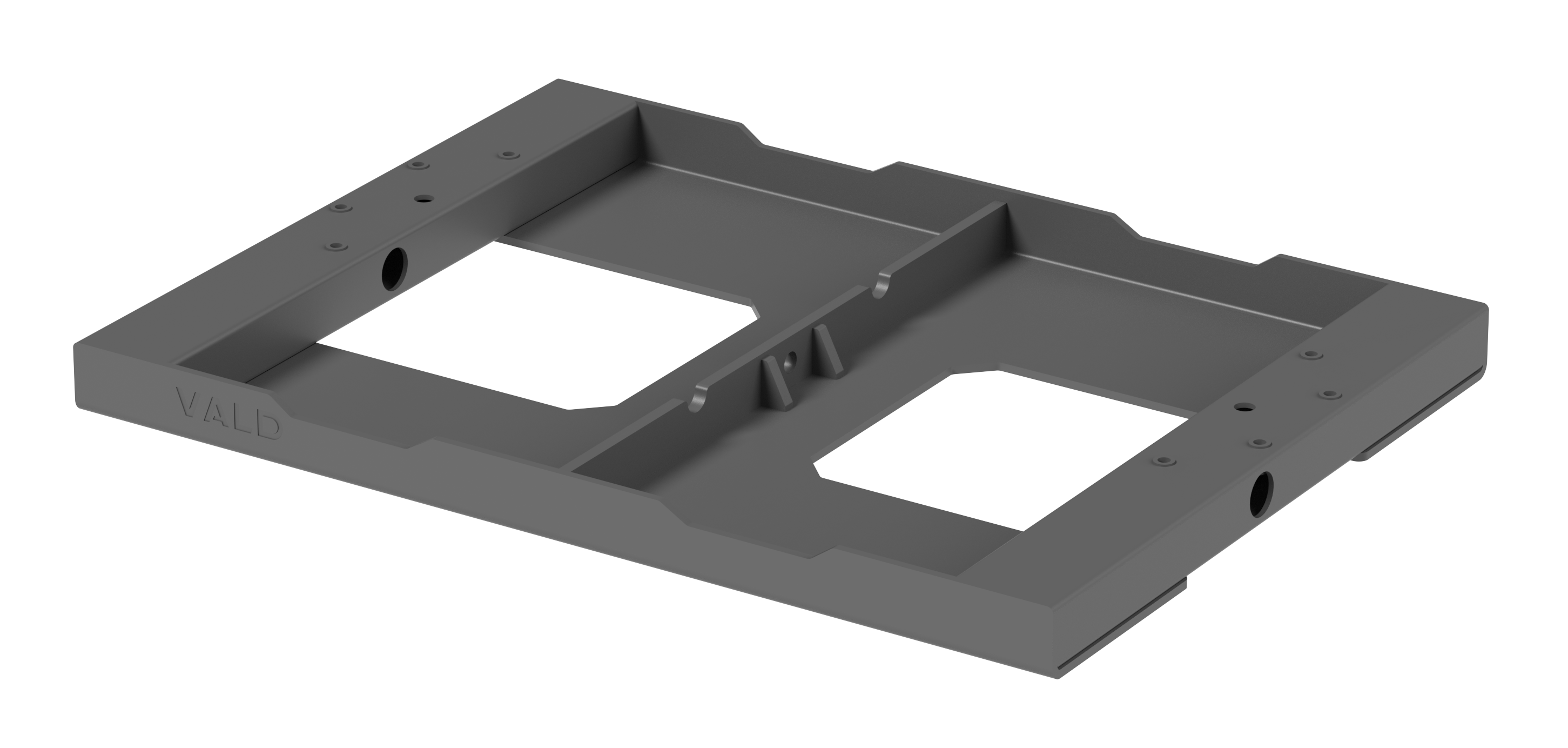

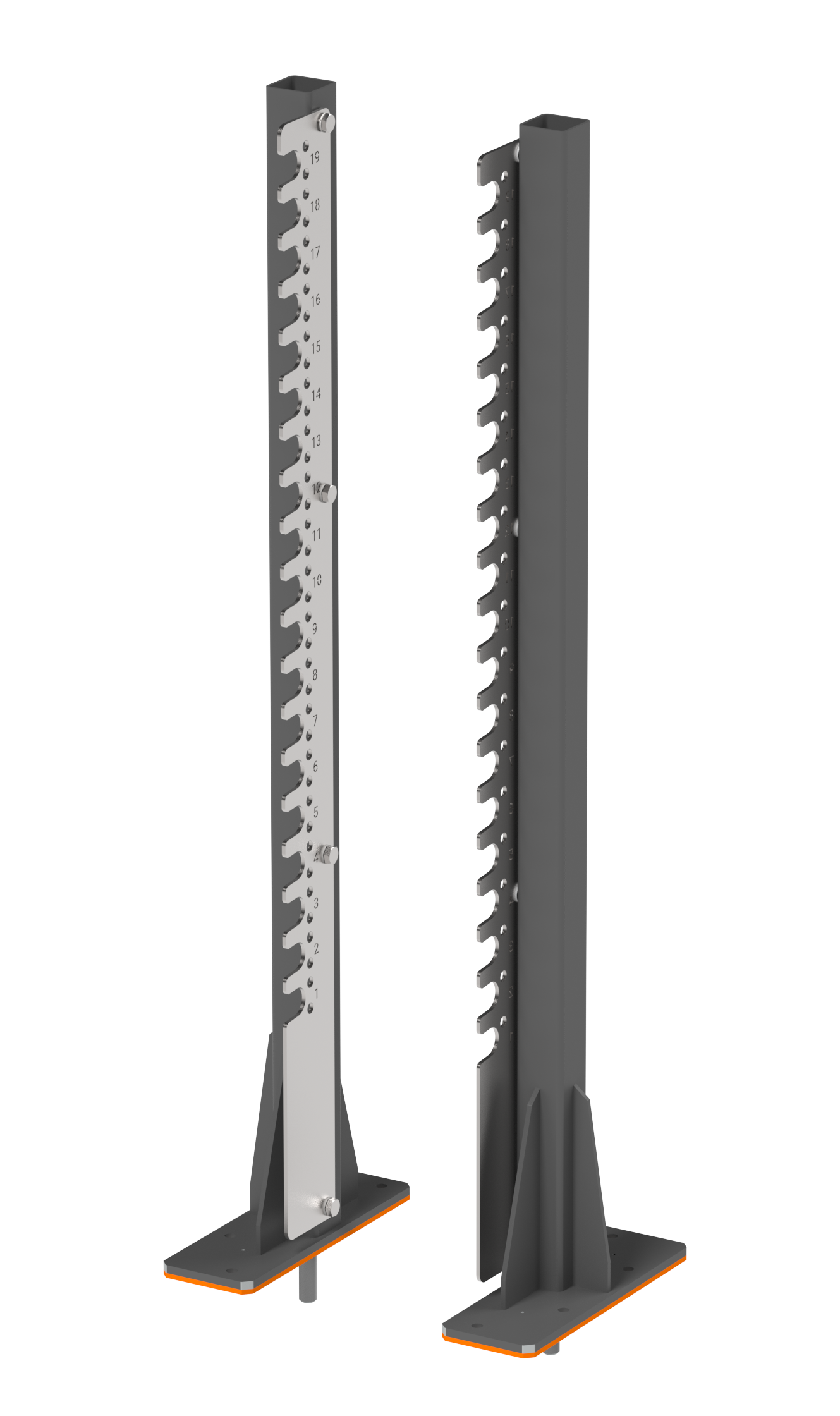

Base plate x1	Posts x2	Top bar x1

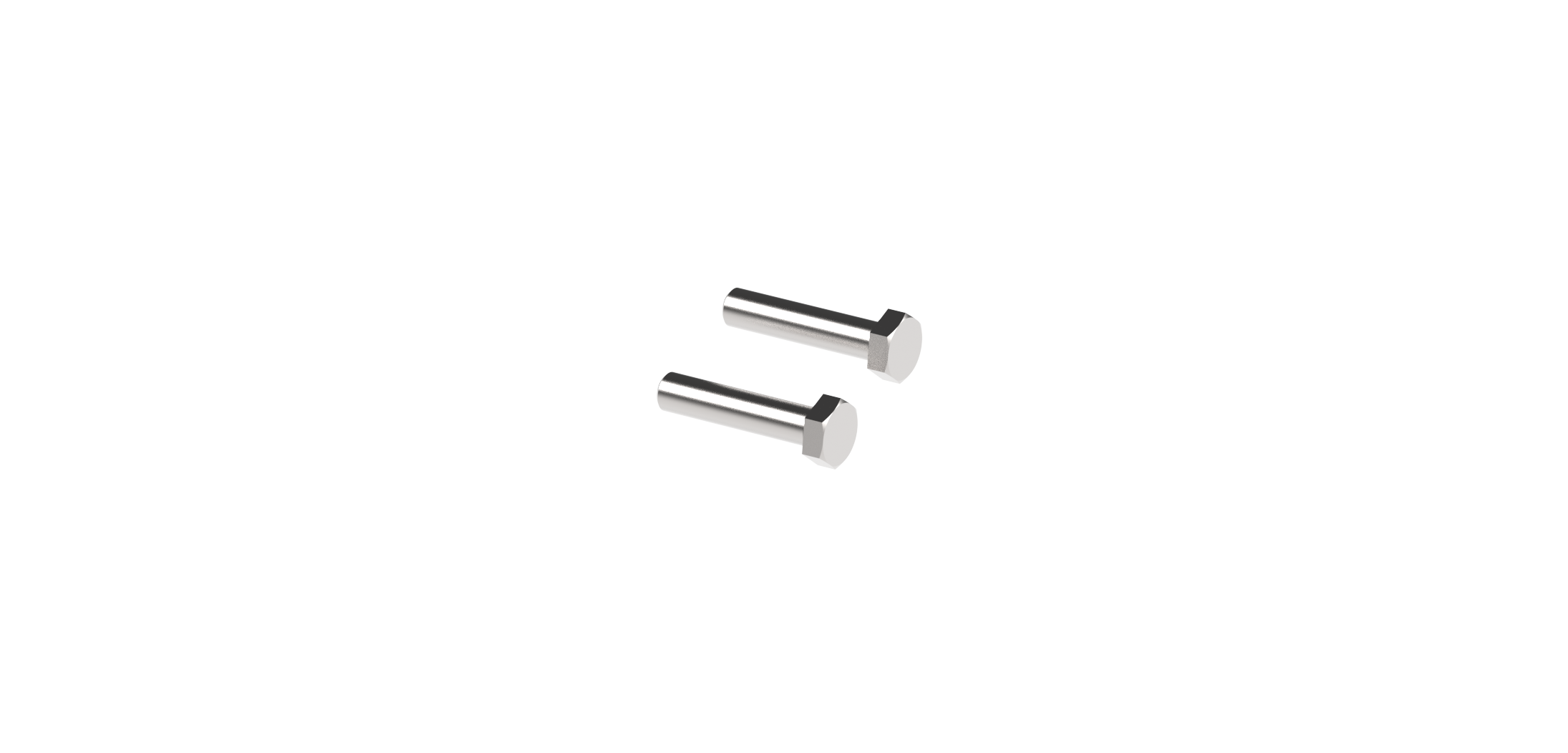

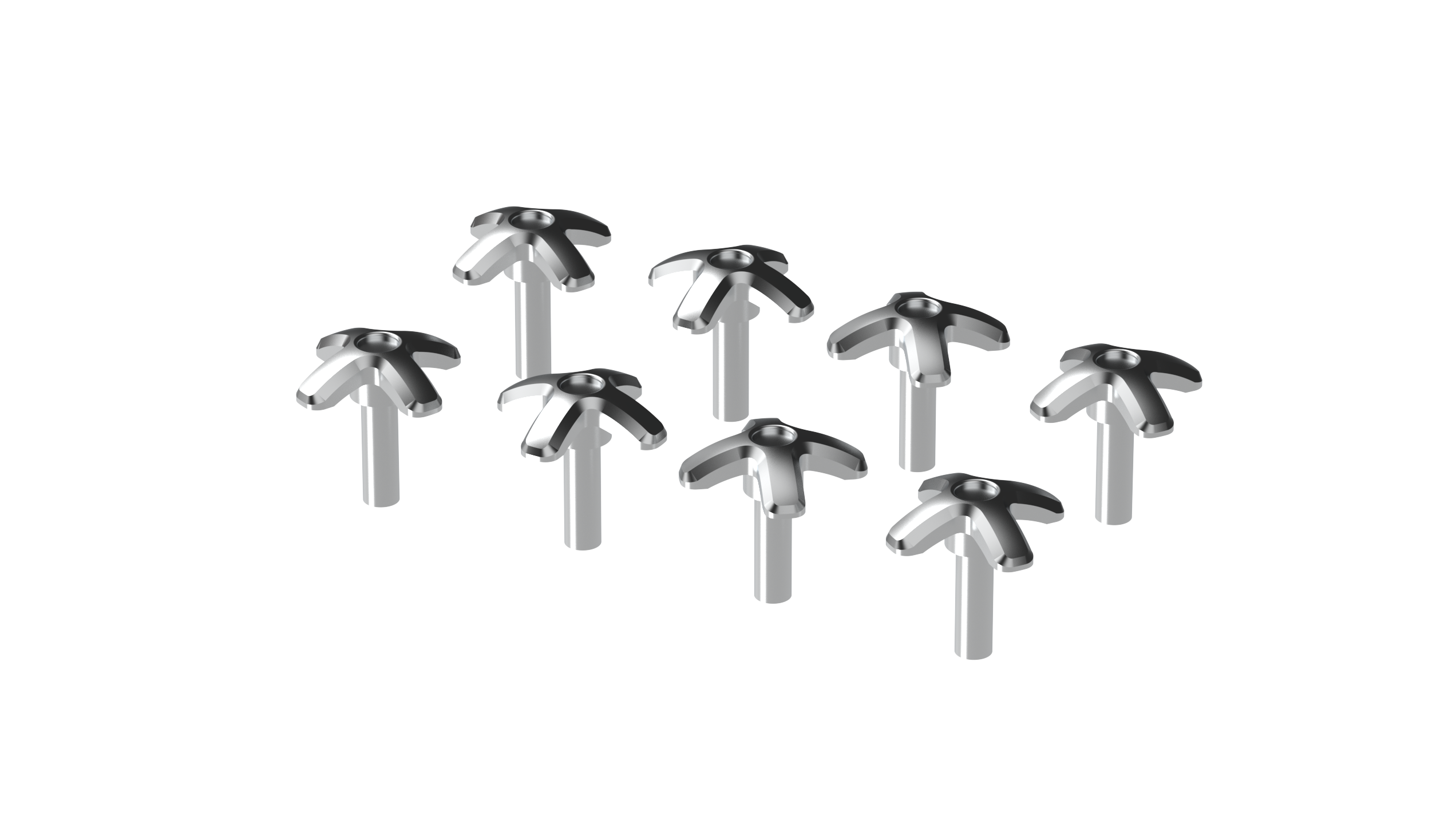

Lifting bar x1	Hand screws x8	Hex bolts x2

Assembly instructions

1. Place the base plate on level ground.

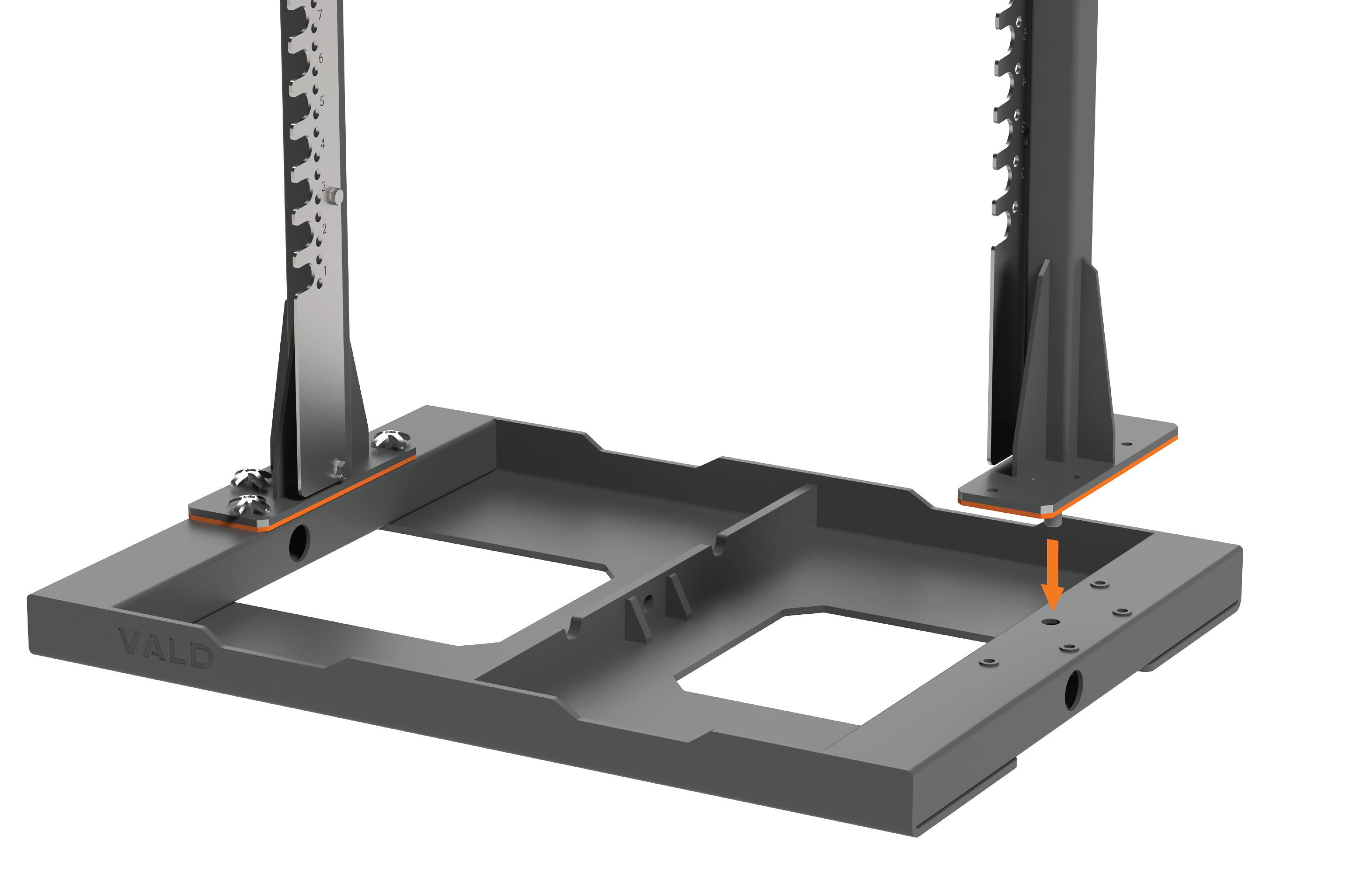

2. Insert one of the posts into the side of the base plate.

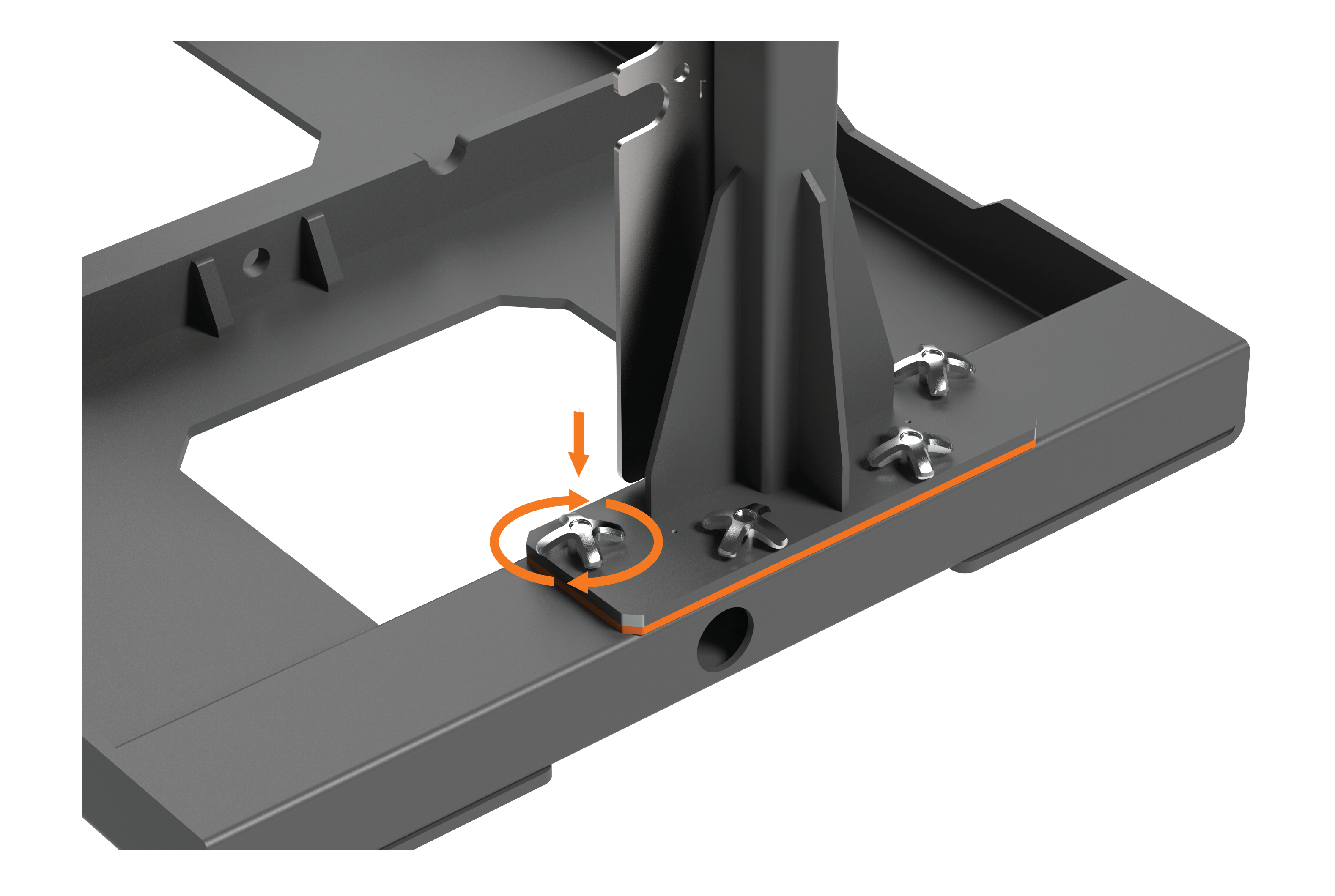

3. Secure the post in place by inserting and tightening four hand screws.

4. Repeat steps 2 and 3 for the second post.
5. While standing on a box or ladder, place the top bar on top of the two posts, then secure in place by inserting and tightening the hex bolts on either side of the top bar.

Note: You will need a spanner, wrench, or ratchet to tighten the hex bolts.

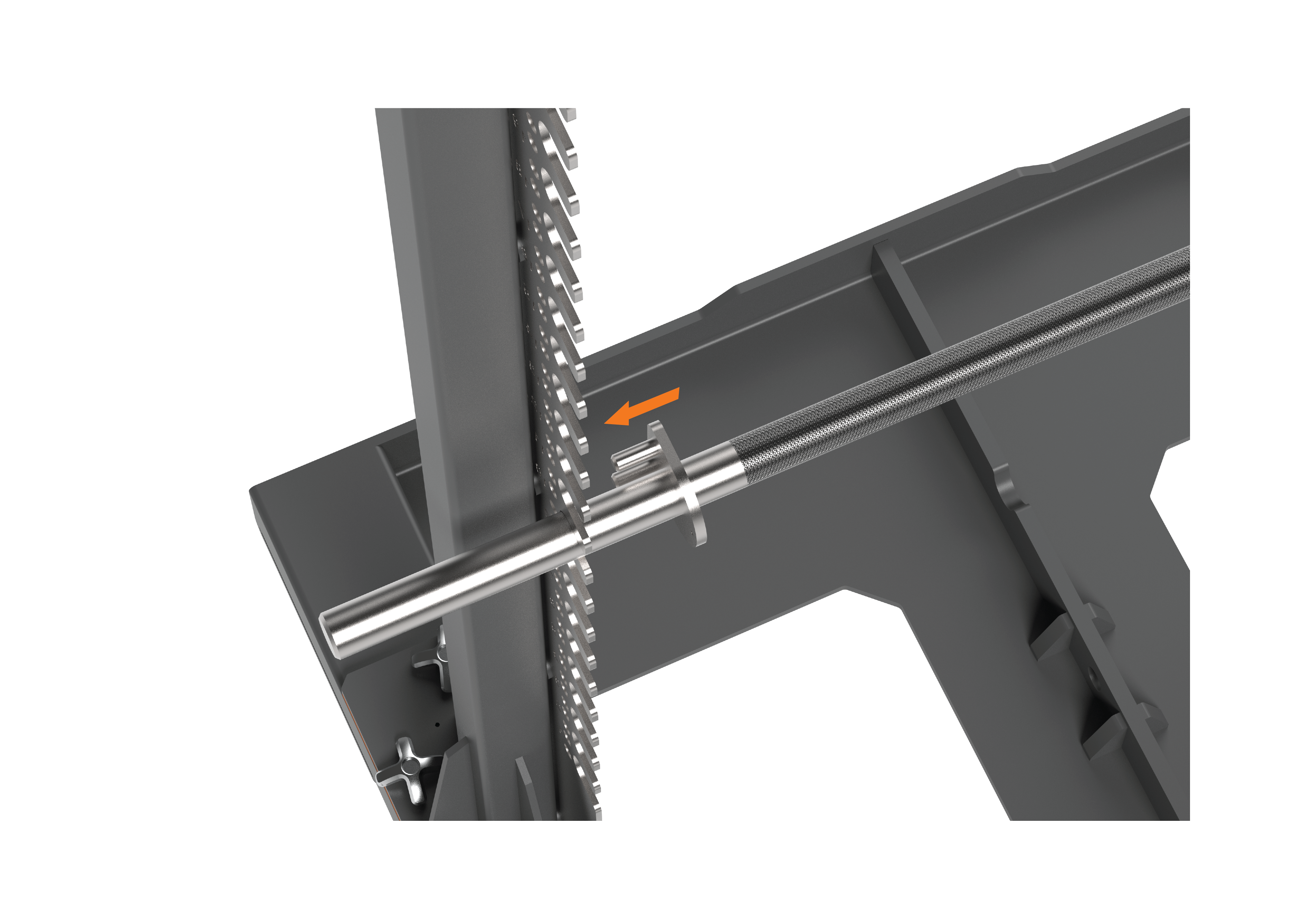

6. Insert the lifting bar by aligning the bar slightly to the right of the desired position on the posts, then slide across so that the pins lock into place.

7. Insert the ForceDecks plates into either side of the base plate.
8. Connect the interplate cable between the two plates.

Your ForceDecks ISO Squat Rack is now fully assembled.
