The IMTP Rack is an accessory for your ForceDecks plates that is specifically designed to perform test types such as Isometric Mid-Thigh Pull.
Components
You will receive the following parts for your IMTP Rack.

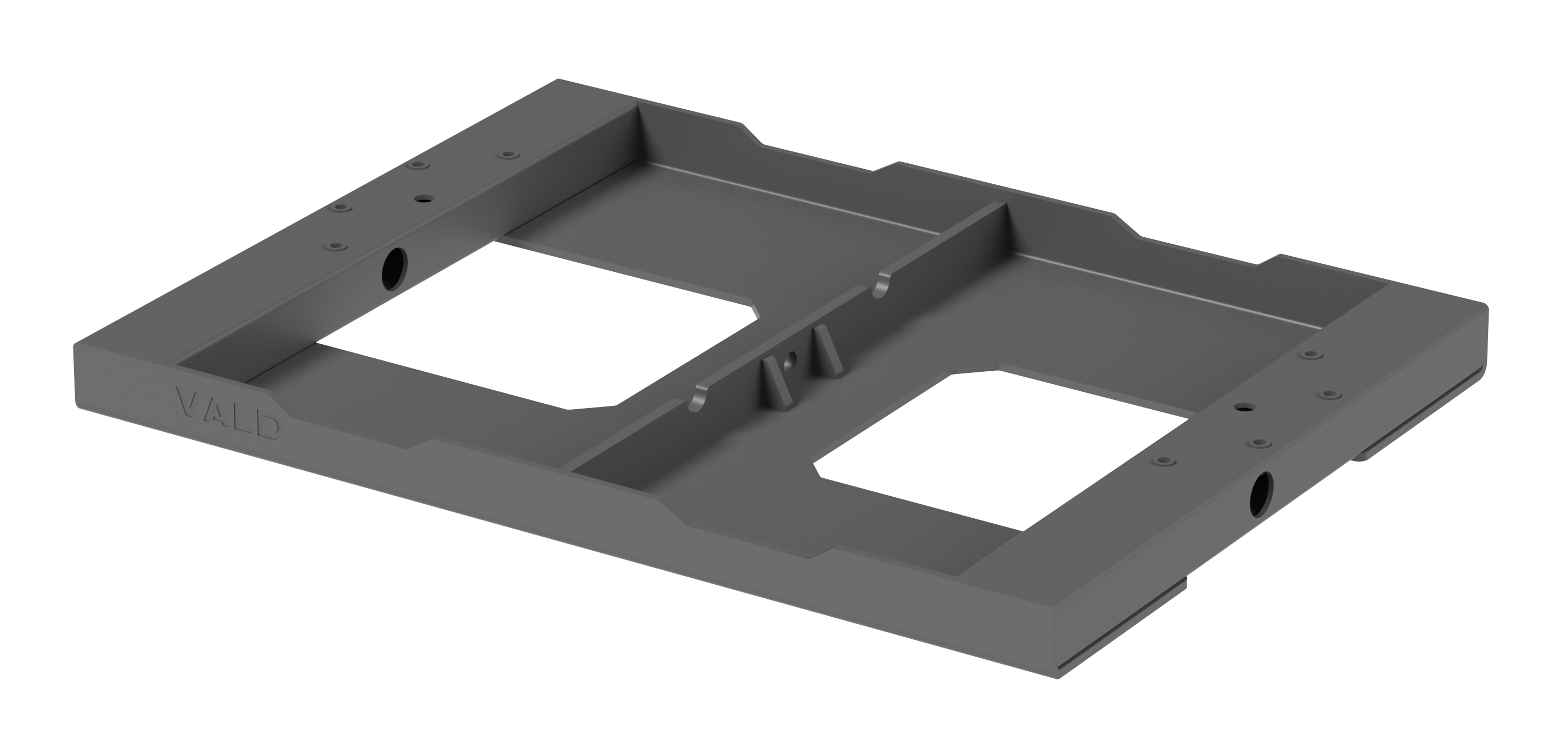

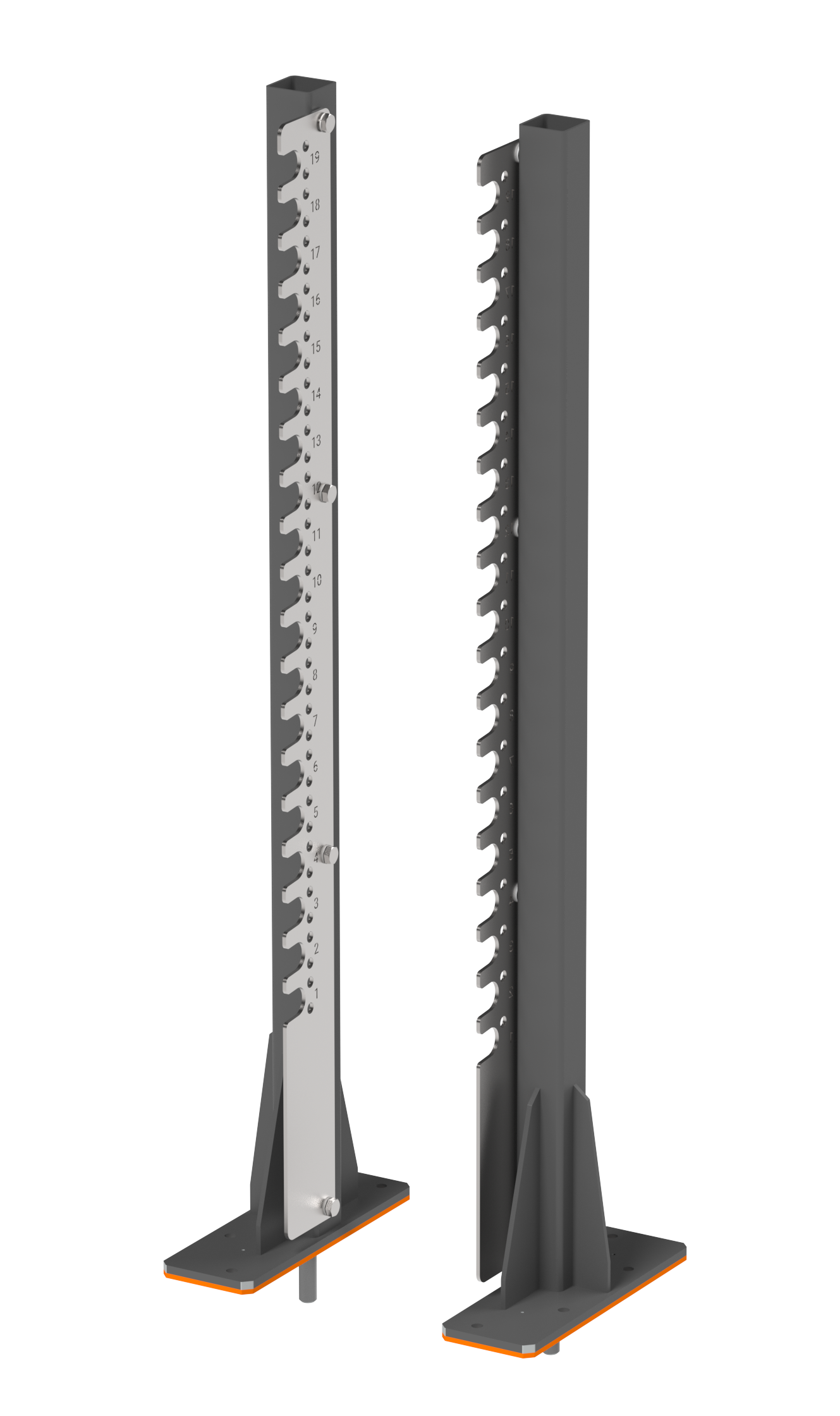

Base plate | Posts x2 |

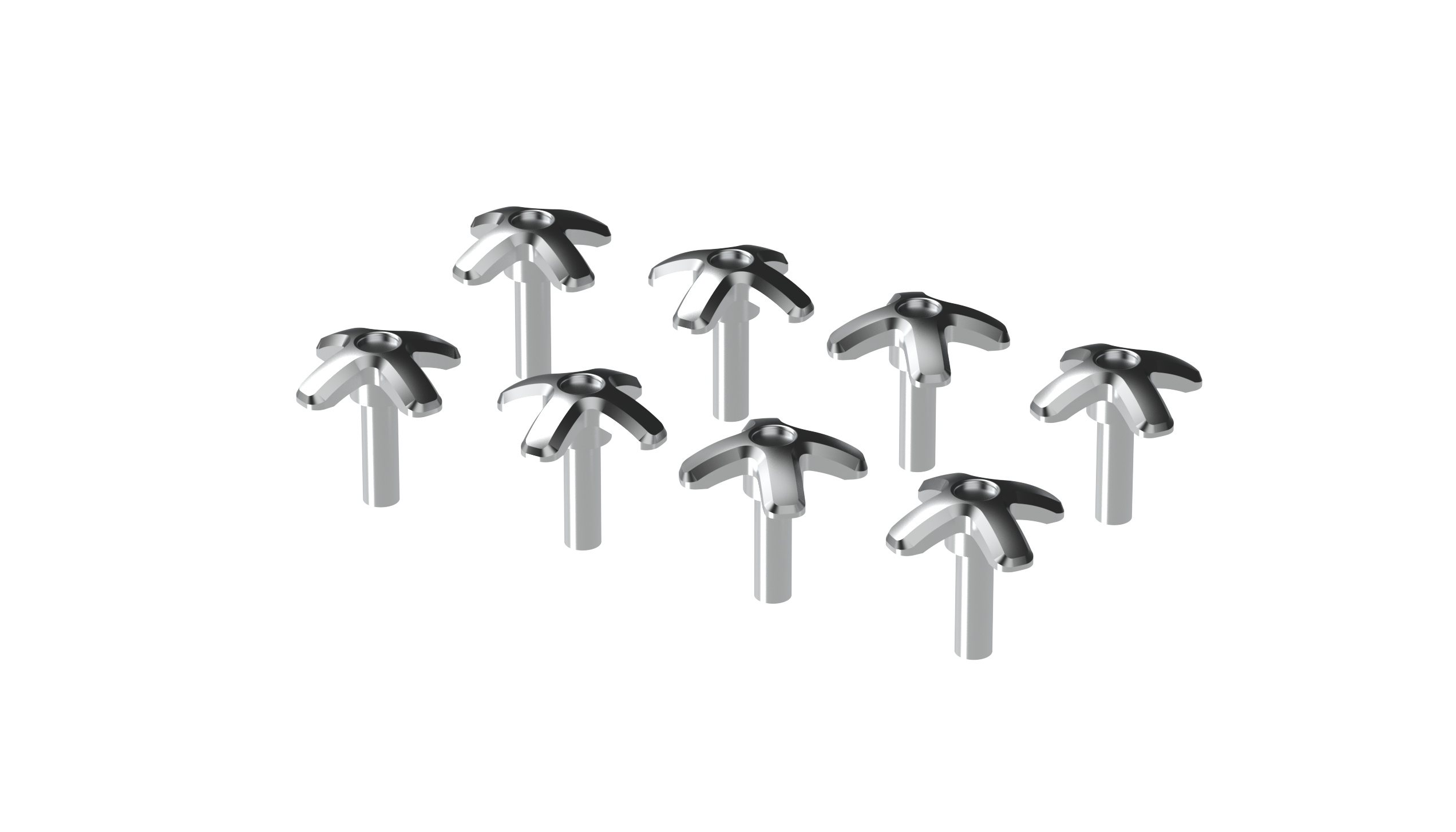

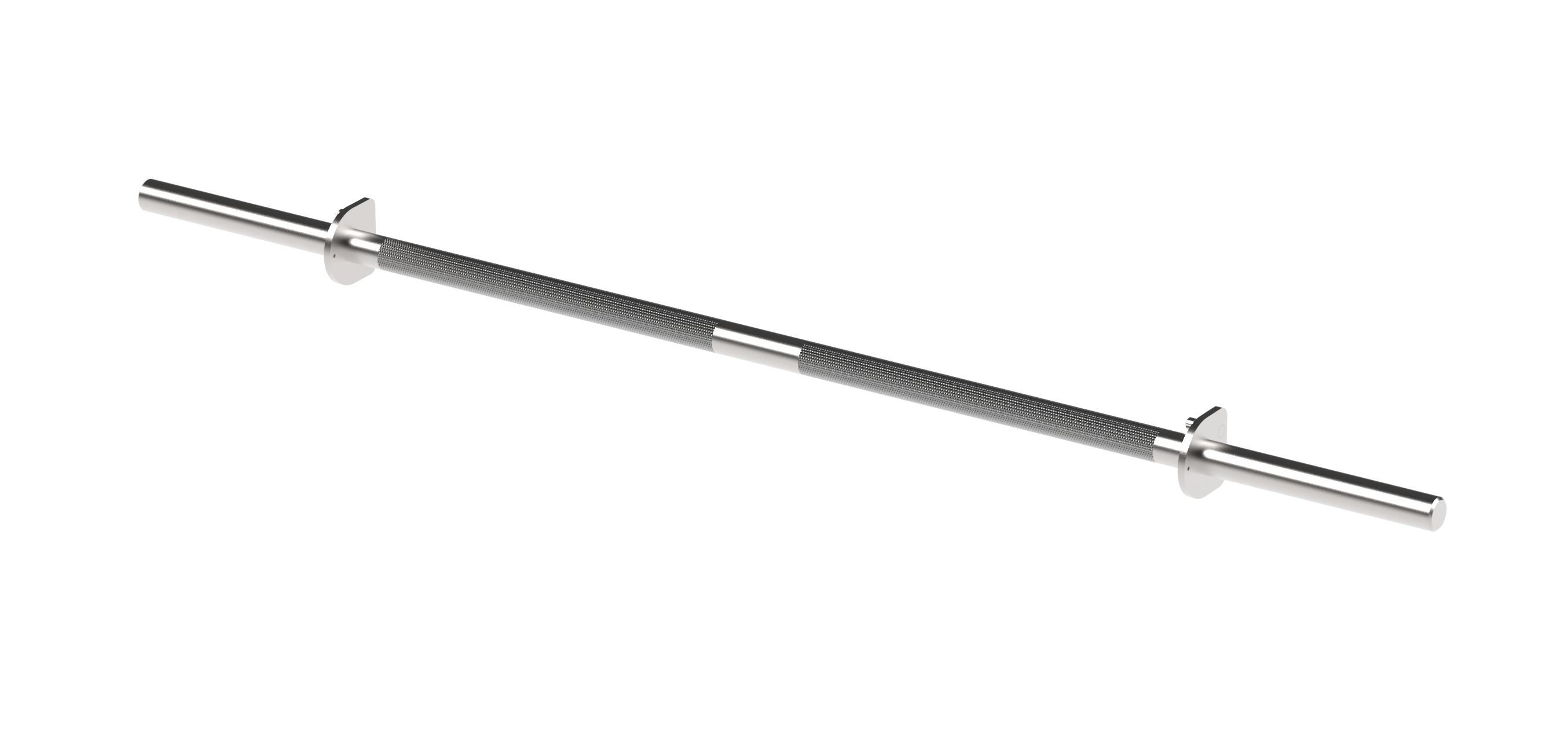

Lifting bar x1 | Hand screws x8 |
Assembly instructions
- Place the base plate on level ground.

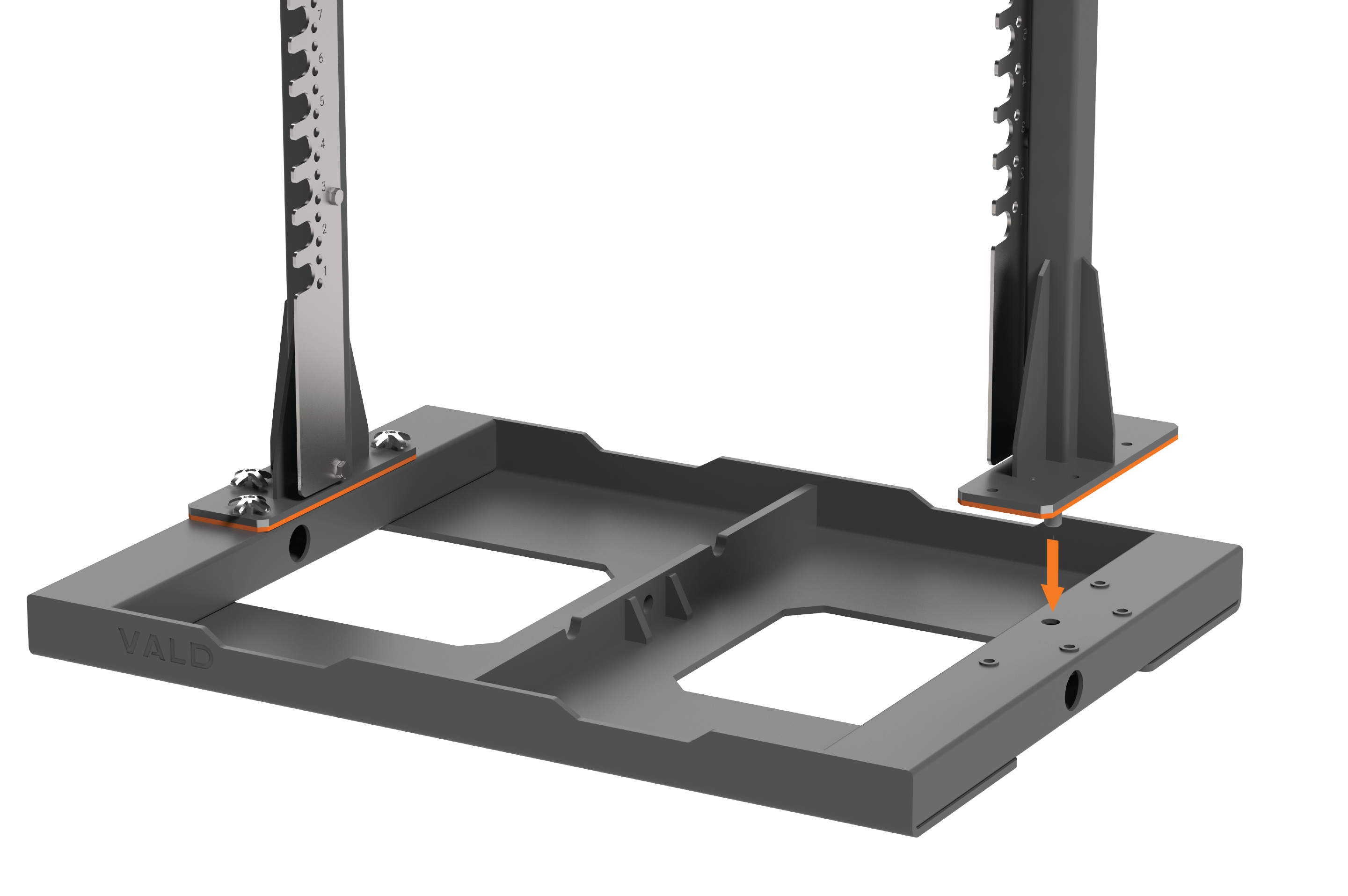

- Insert one of the posts into the side of the base plate.

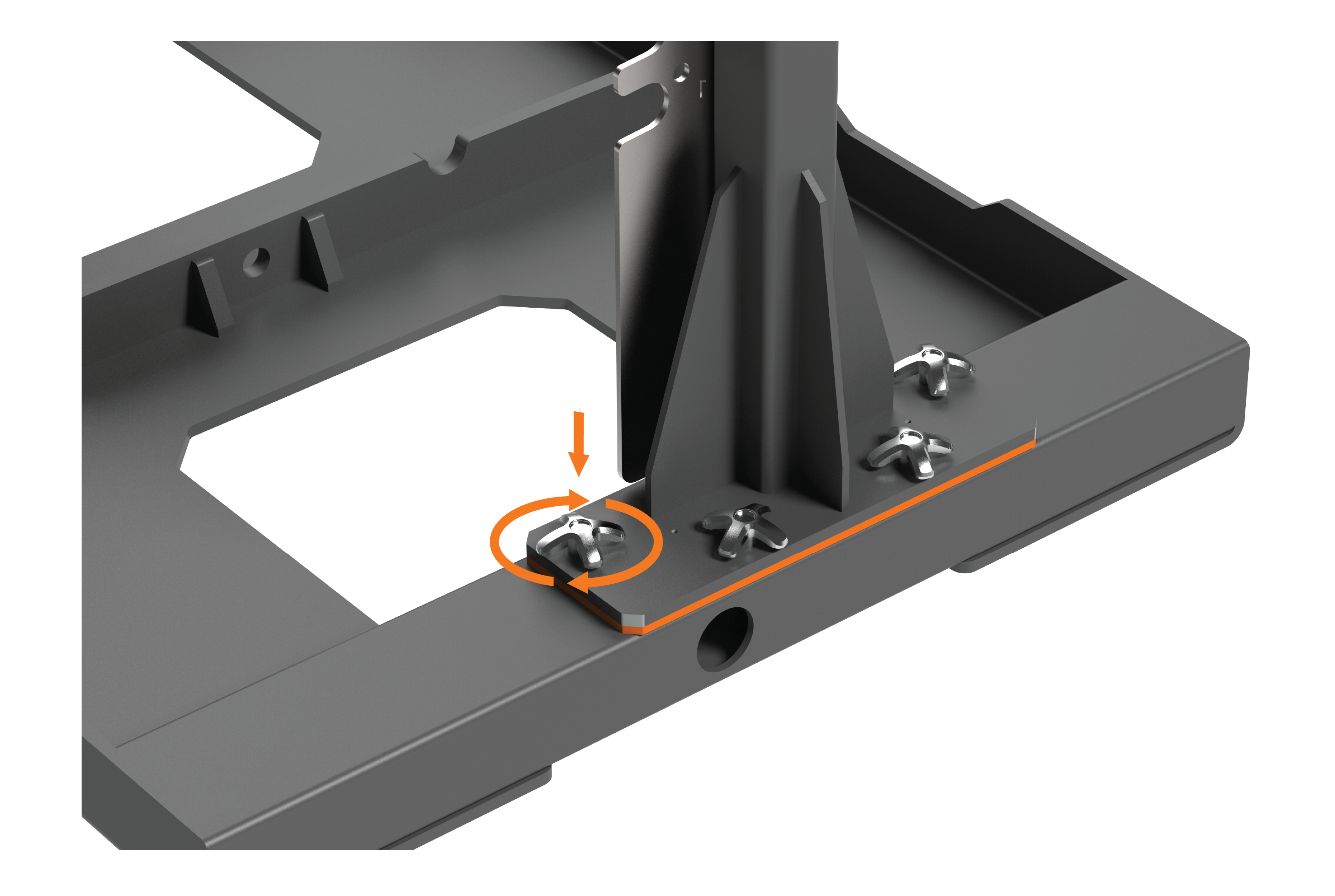

- Secure the post in place by inserting and tightening four hand screws.
- Repeat steps 2 and 3 for the second post.

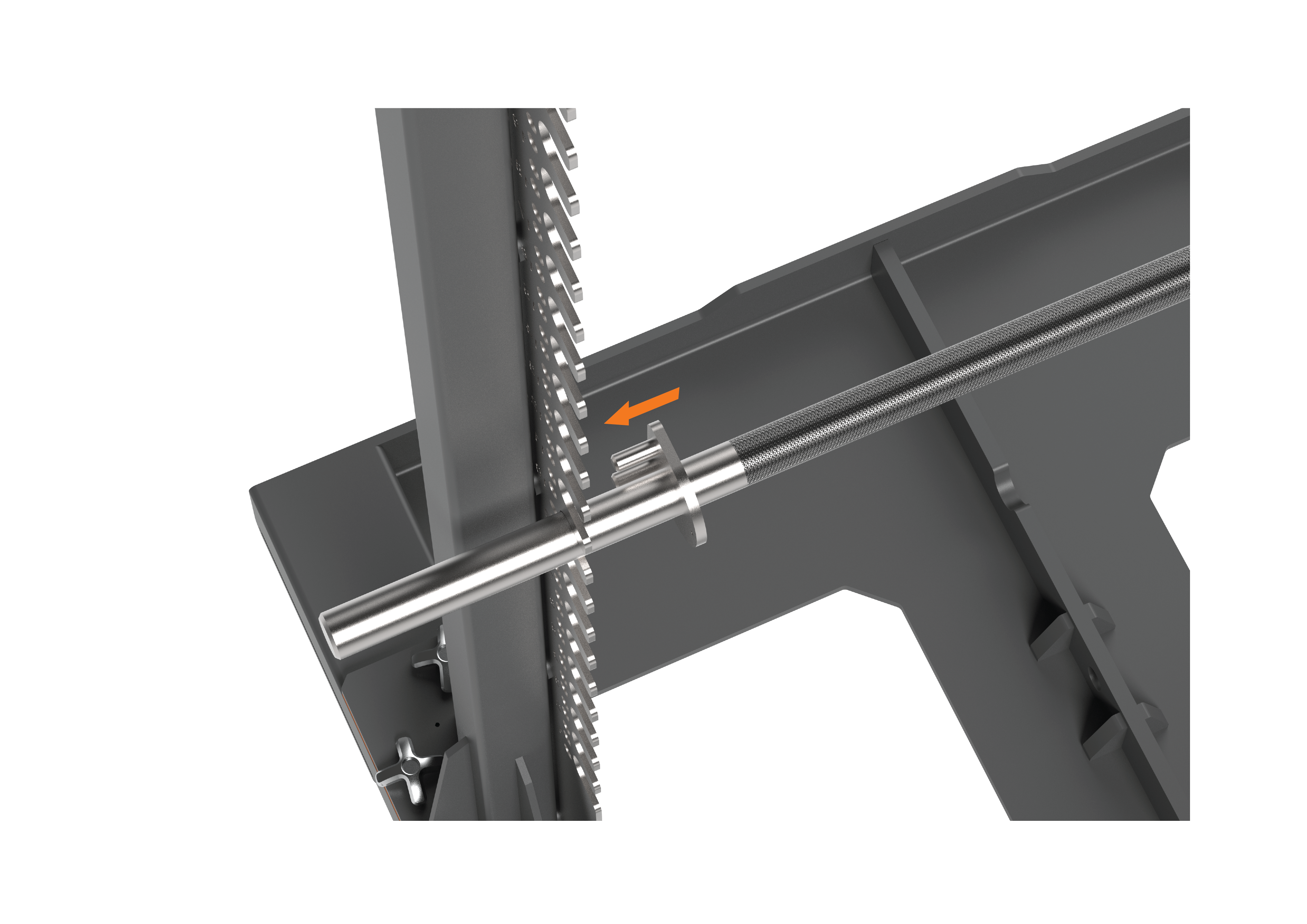

- Insert the lifting bar by aligning the bar slightly to the right of the desired position on the posts, then slide across so that the pins lock into place.
- Insert the ForceDecks plates into either side of the base plate.
- Connect the interplate cable between the two plates.
Your ForceDecks IMTP Rack is now fully assembled.
