When you run a ForceFrame test in the ForceFrame App, a number of metrics are calculated automatically.
Here is an overview of the metrics displayed in the app:

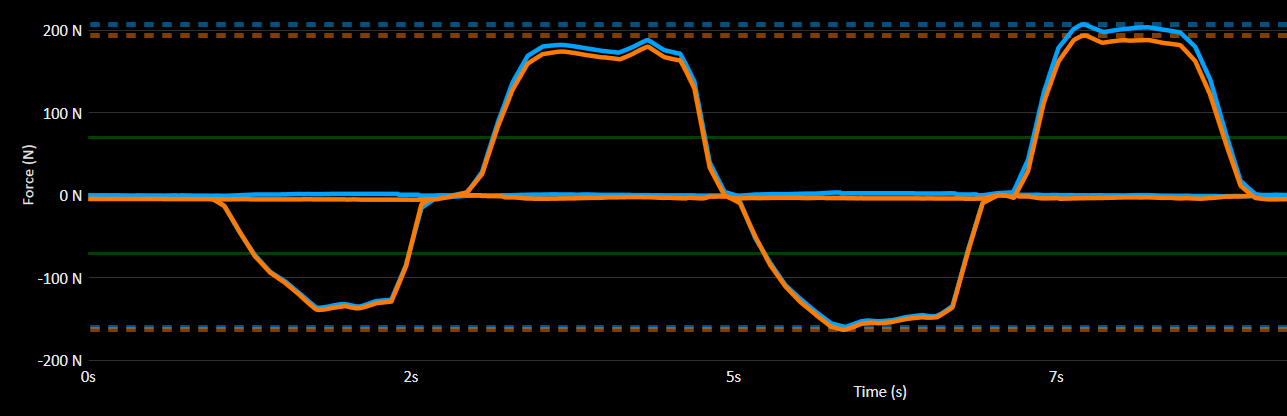

1 | The main display shows a force-time trace during a test |
|
|
|
|

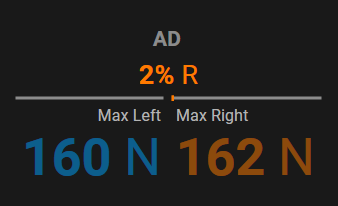

2 | The top-left metrics show maximum inner sensor results:
|
|

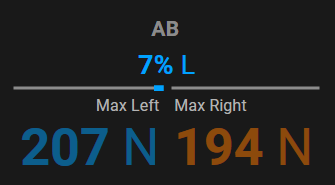

3 | The top-middle metrics show maximum outer sensor results:
|
|
4 |

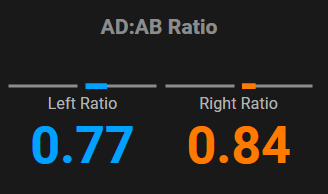

The top-right metrics show a ratio of maximum inner force: maximum outer force <1:1 = Outer force is dominant |
|

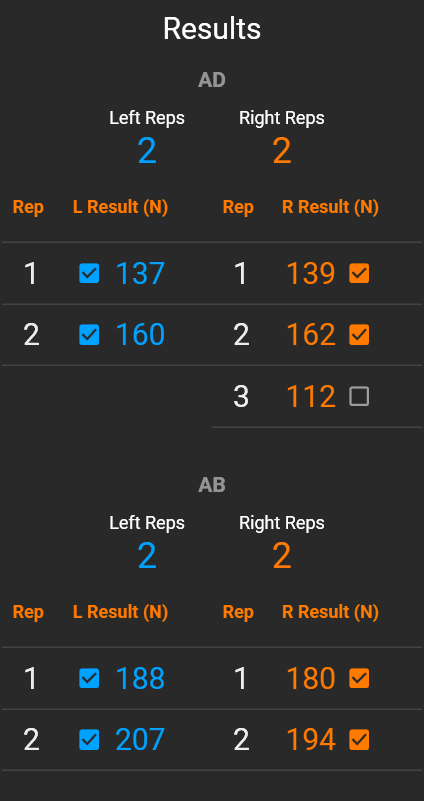

5 | The right-hand results panel shows rep-by-rep results. Unwanted reps (e.g. accidental reps or reps performed with undesirable form) can be de-selected using the checkboxes next to each rep. |
|
6 |

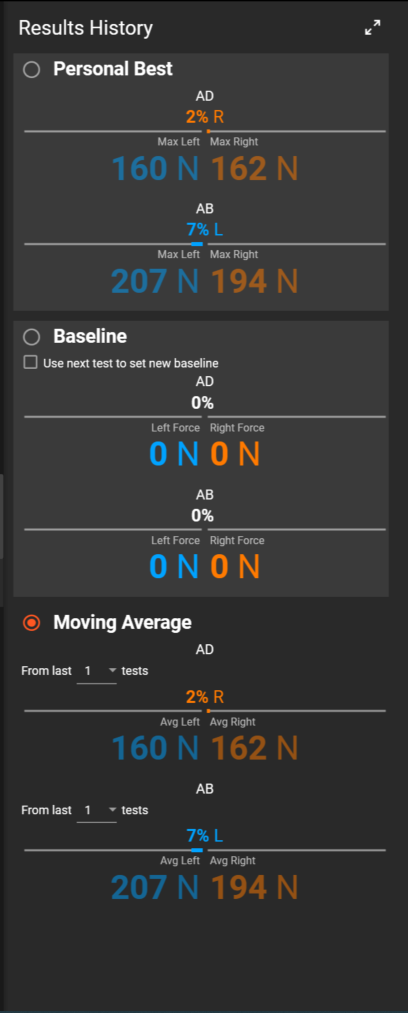

The History option shows reference points for the individual being tested, based on the test type conducted:
|
|
