ForceFrame uses thresholds to detect when a rep is performed, as well as detect when impulse should be recorded.
These thresholds allow for real-time analysis as each rep is completed, and can be adjusted in the ForceFrame settings as required.
For example:
If the rep threshold is set to 150N, ForceFrame will detect that a rep has started when the force applied exceeds 150N, and it will begin looking for a peak.
If the impulse threshold is set to 25N, ForceFrame will start calculating impulse when the force applied exceeds 25N. The impulse threshold is used to ensure unwanted contractions (e.g. re-positioning between reps) does not skew overall impulse results.

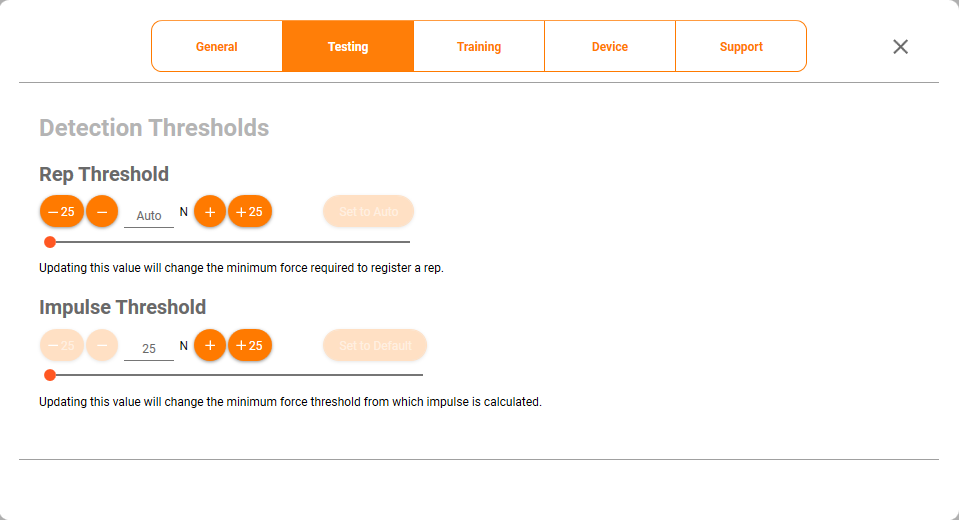

To adjust detection thresholds in ForceFrame Windows:
- Log in to the ForceFrame app
- Click Settings
- Go to the Testing tab
- Adjust the rep threshold or impulse threshold values as required
- Click the X icon in the upper right-hand corner to close the pop-up and save your settings
