Adjusting detection thresholds in ForceFrame iOS

ForceFrame uses thresholds to detect when a rep is performed, as well as detect when impulse should be recorded.

These thresholds allow for real-time analysis as each rep is completed, and can be adjusted in the ForceFrame settings as required.

For example:

If the rep threshold is set to 150N, ForceFrame will detect that a rep has started when the force applied exceeds 150N, and it will begin looking for a peak.

If the impulse threshold is set to 25N, ForceFrame will start calculating impulse when the force applied exceeds 25N. The impulse threshold is used to ensure unwanted contractions (e.g. re-positioning between reps) does not skew overall impulse results.

Note: The ForceFrame iOS app only allows adjustment of rep detection thresholds. The threshold for calculating impulse cannot be customized.

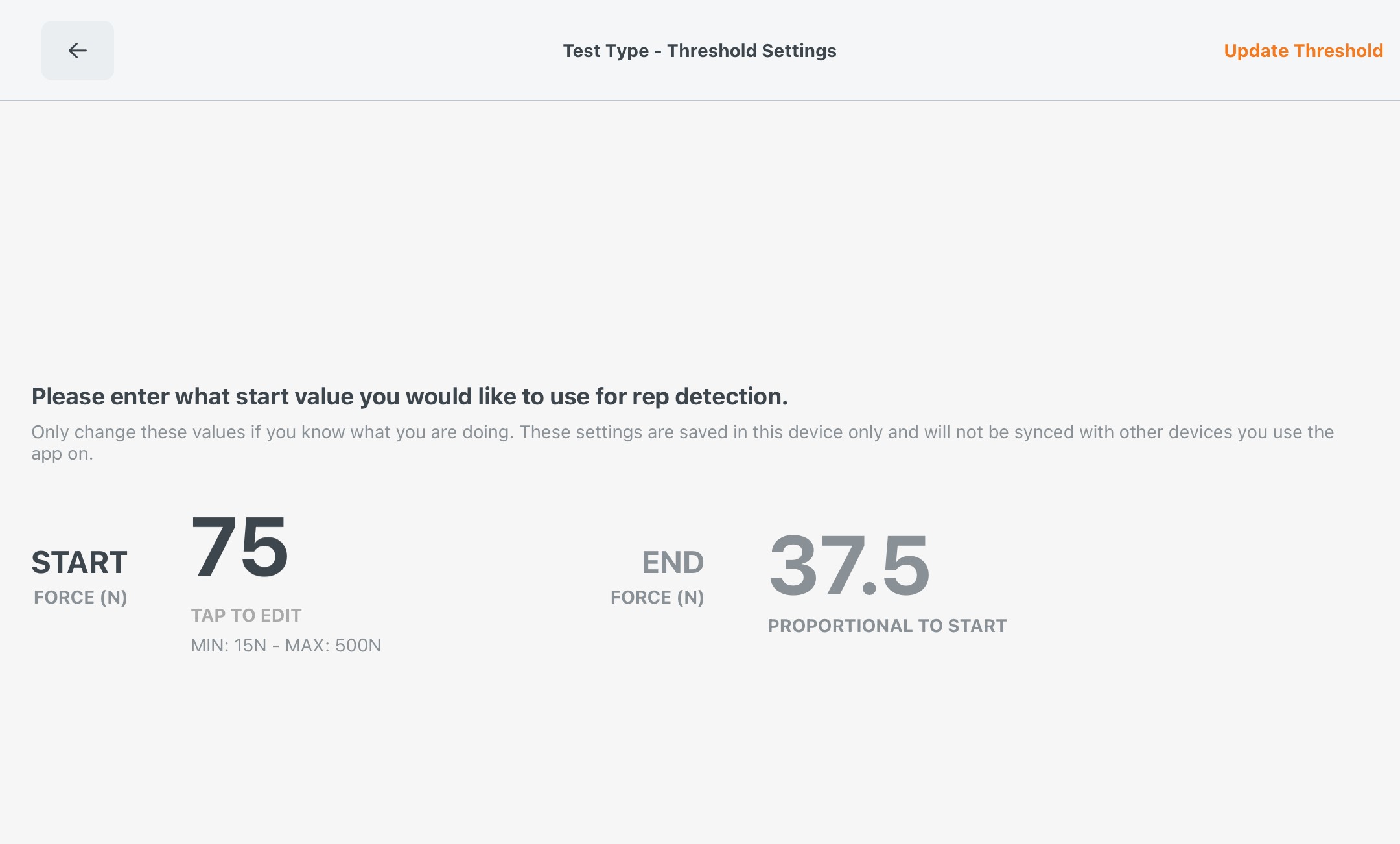

Adjust rep detection thresholds

Keep in mind that any modifications made to rep detection thresholds are applied only for the current user and device. If you test on multiple user accounts or devices these will need to be configured again.

1. Log in to the ForceFrame iOS app
2. Navigate to Settings > Settings > Modify Rep Thresholds
3. Tap the arrow next to a test type and edit the rep threshold as needed
4. When finished, press Update Threshold in the top right corner to save
