When you first receive your HumanTrak, some assembly will be required. Please use the below guide to assist with assembling your new HumanTrak system.
What's in the box?
| Custom laptop | Orbbec Femto Bolt 3D camera |
| Wireless keyboard | Camera tripod |
| Laptop charger cable and power cell | Camera cable |
| Carry case with foam inserts | |
Assembling the HumanTrak system
- Pull the legs of the tripod outward and push down the spreader to clip the tripod into place.
- On one of the legs, unclip the bottom two leg extender locks and pull out the leg, then clip the leg locks back into place.
The camera tripod should be set up to around a 90 centimeter height.
- Repeat step two so all three legs are extended.
- Mount the camera to the tripod head by screwing the camera base to the tripod as shown.
- Connect the laptop to power with the provided charging cable.
For optimal performance, the laptop should always be placed on charge while testing.

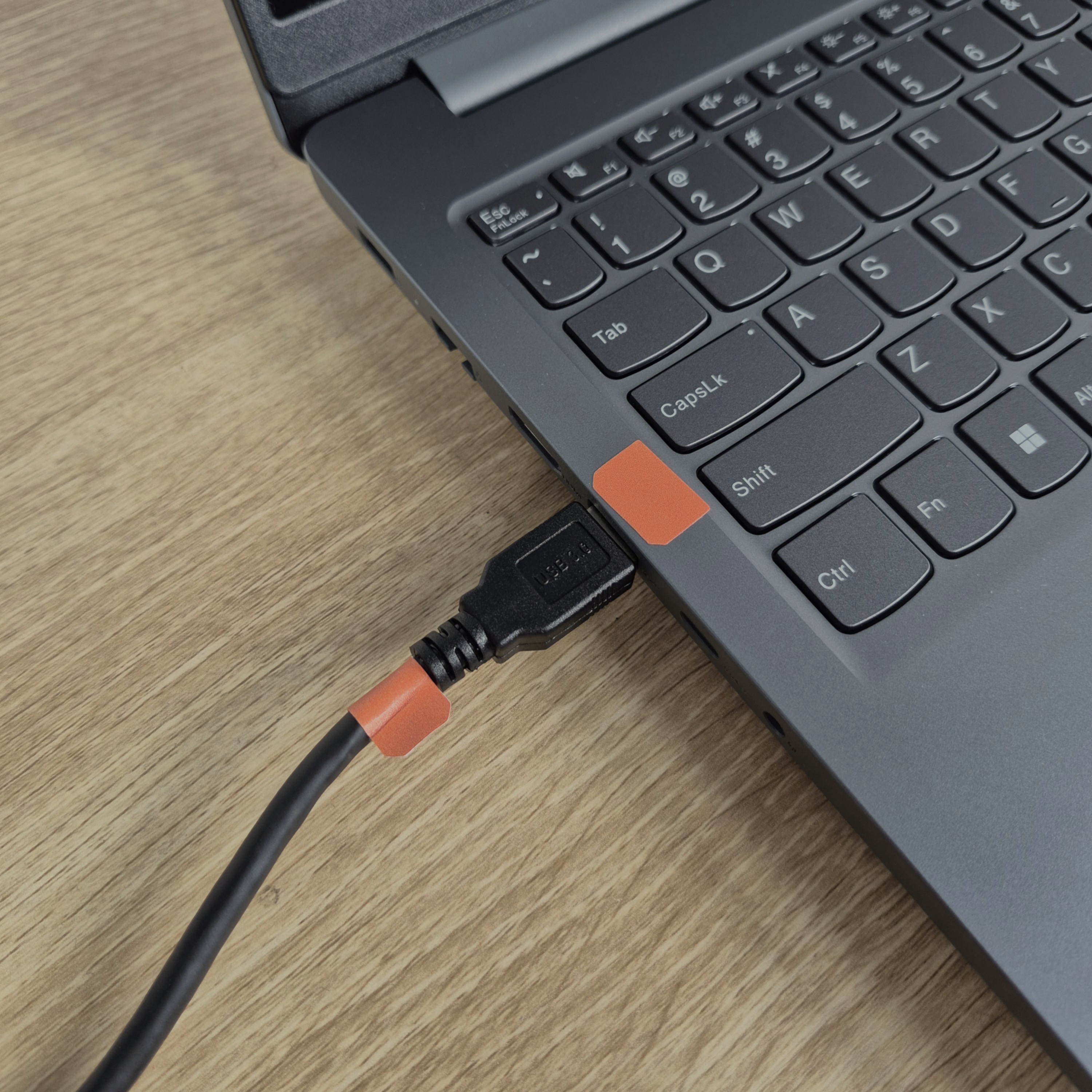

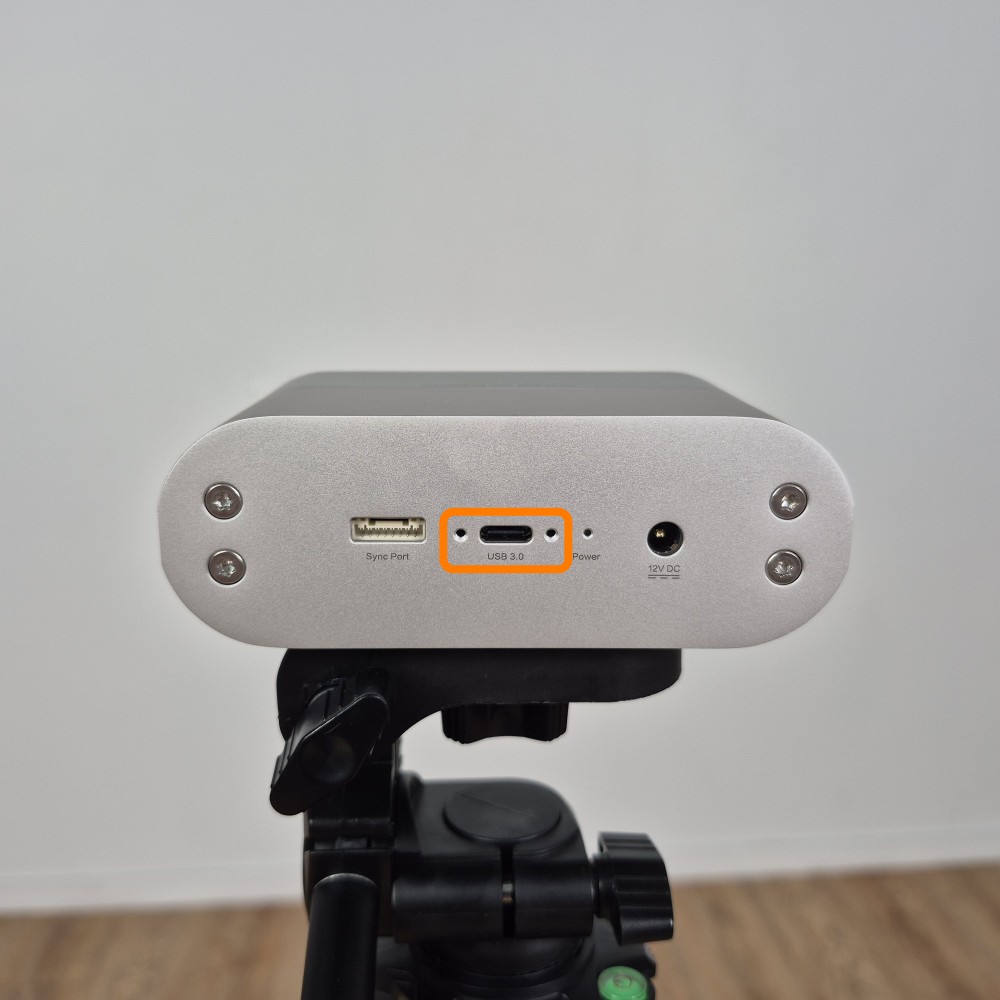

- Plug the camera cable into the USB-C port on the back of the camera. Then, plug the other end of the cable into the USB 3.0 port marked with an orange sticker on the laptop.
Ensure that you connect the camera directly to the specified USB port on the laptop. Do not use a USB hub or any intermediary connector.
Optional step
- Connect the wireless keyboard to the laptop. Locate the USB dongle on the reverse-side of the battery cover, then plug the dongle into a remaining USB port on your laptop. This will automatically pair the device.
Getting started
Now that your system is assembled, you are ready to start testing. Turn on the laptop and open the preinstalled HumanTrak application.
Log in using your VALD credentials and start testing with HumanTrak.
