Compare ForceDecks models

The ForceDecks range consists of several models including ForceDecks Mini, ForceDecks Lite, and ForceDecks Max. This article compares core functions and specifications of ForceDecks models to help you understand the differences and make informed choices.

	ForceDecks Mini	ForceDecks Lite (V2)	ForceDecks Max
Key features	Compact, light and portable model Best for functional, balance and isometric tests	Most popular model, both portable and high capacity  Best for jumps, isometrics and more	Largest surface area and highest capacity Best for larger athletes or high-force tests
Weight (single plate)	5 kg / 11 lb	9 kg / 20 lb	20kg / 45lb
Surface area (single plate)	22.5 x 40 cm / 9 x 16 in	30 x 48.5 cm / 12 x 19 in	35 x 70 cm / 14 x 28 in
Size comparison (US size 11 foot)
Load capacity	1,000 kg / 2,200 lb	2,000 kg / 4,400 lb	2,000 kg / 4,400 lb
Sampling rate	Up to 1,000 Hz	Up to 1,000 Hz	Up to 1,000 Hz
Battery capacity	20 hours of active use	50 hours of active use	50 hours of active use
Wireless communication	Bluetooth 5	Bluetooth 5	Bluetooth 5

Looking for more detail? Download the full ForceDecks technical specifications document via our article.

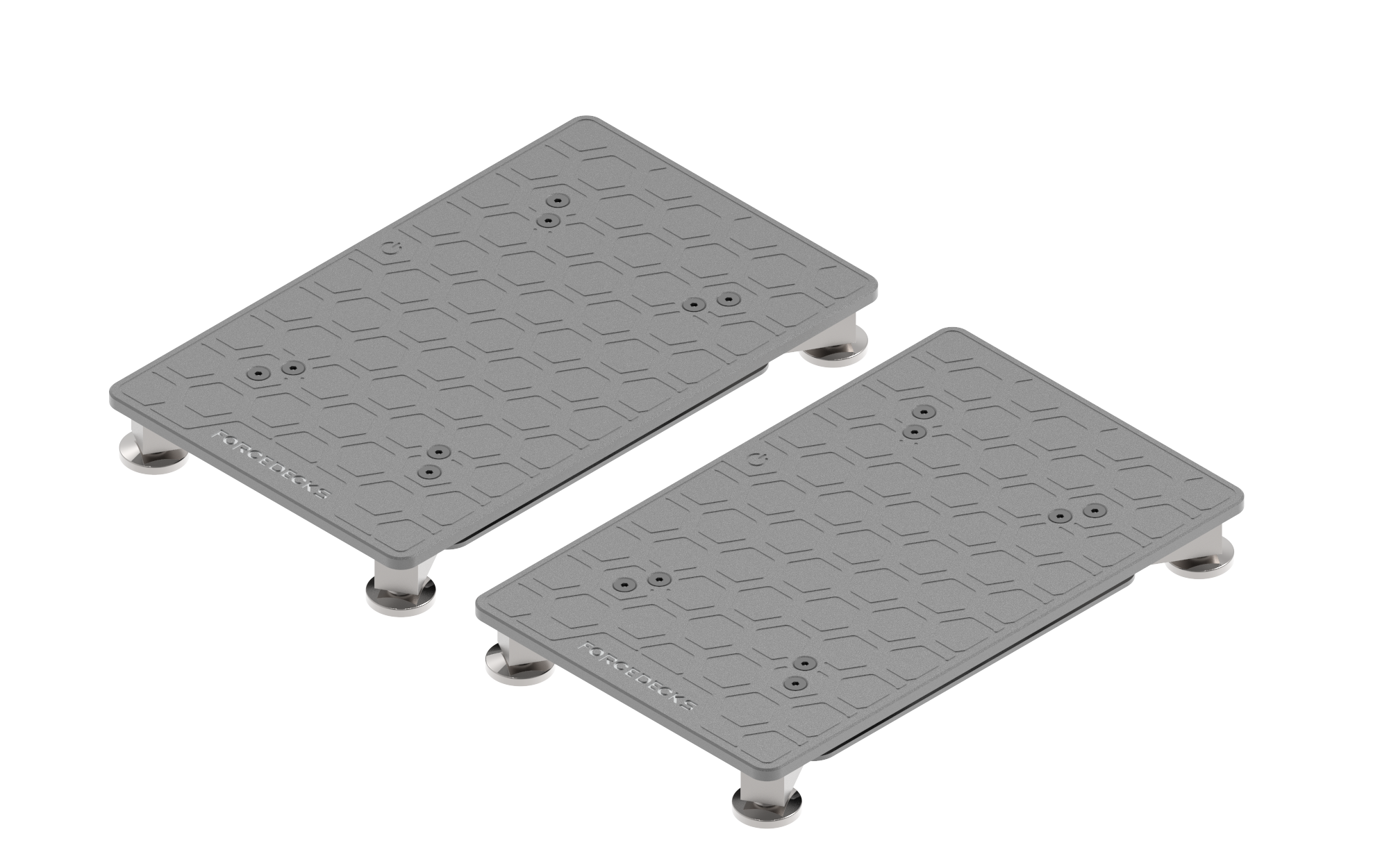

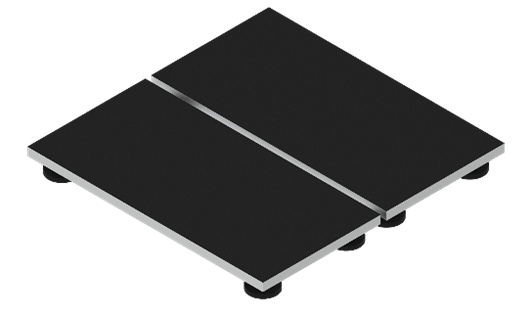

Note: ForceDecks systems that have plates with a black surface – instead of the silver pictured above – will be one of the following 'V1' models depending on the plate size.

ForceDecks FD4000 (larger plates)	or	ForceDecks Lite (V1) (smaller plates)

If unsure which ForceDecks model you have, find the model name together with the serial number on the right side of your plates.
