Setting up your HumanTrak System - Azure Camera

When you receive your HumanTrak Movement Analysis System, it will be disassembled and packed into a hard carry case, ready for transport.

This article will run you through what's included, and how to set it up, ready for testing.

What's in the case?

• Custom HumanTrak Laptop
• Laptop Charger + Power Cell
• Camera Tripod
• Azure Kinect 3D Camera
• Wireless Keyboard with Track Pad
• Separate Camera Power + Camera Data Cables or
• Single USB-C Power and Data Cable

Setting up the Azure Kinect Camera

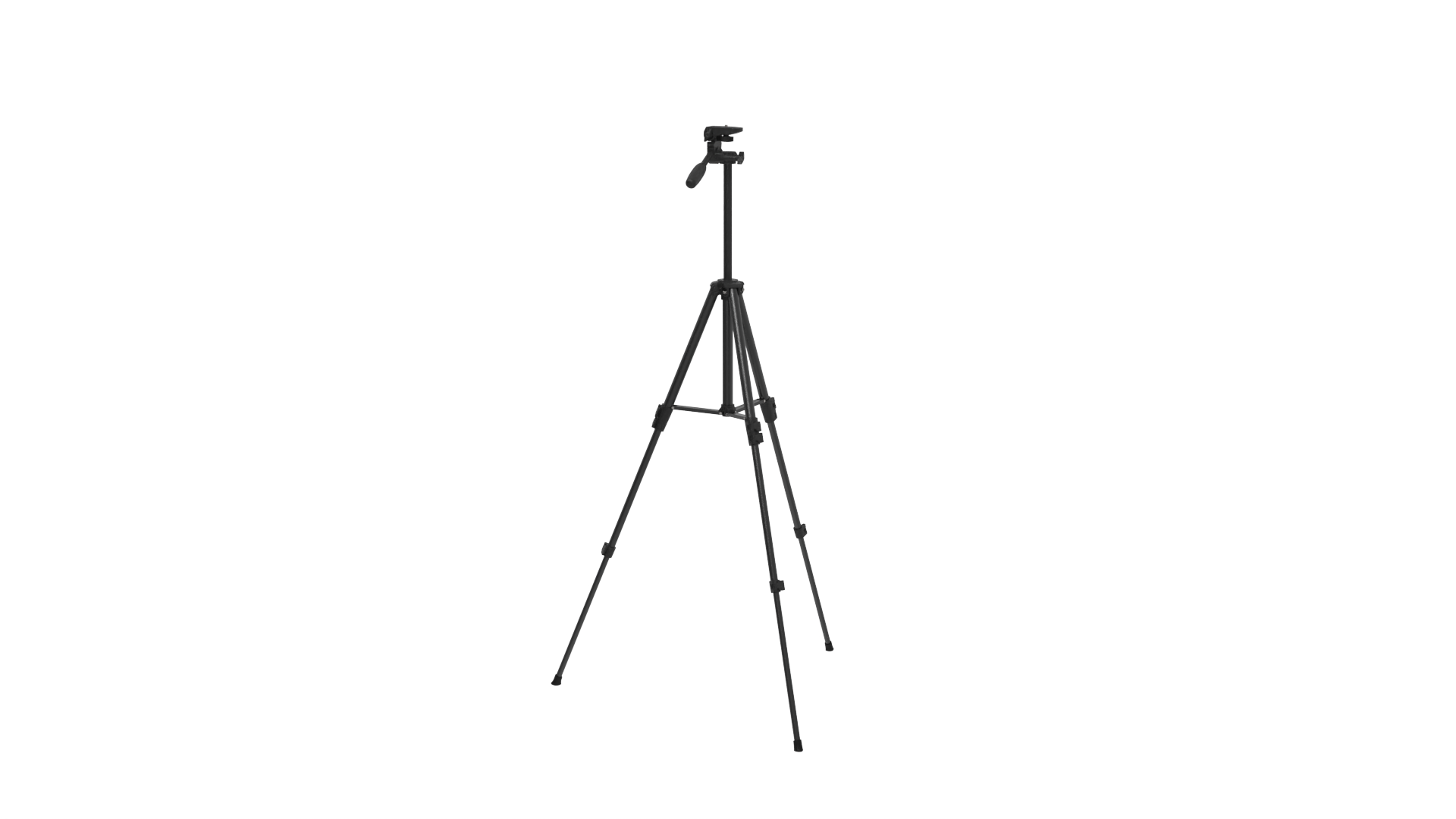

1	Fully extend two of the three leg extensions down, keeping the neck in place. Aiming for a ~0.9m height.

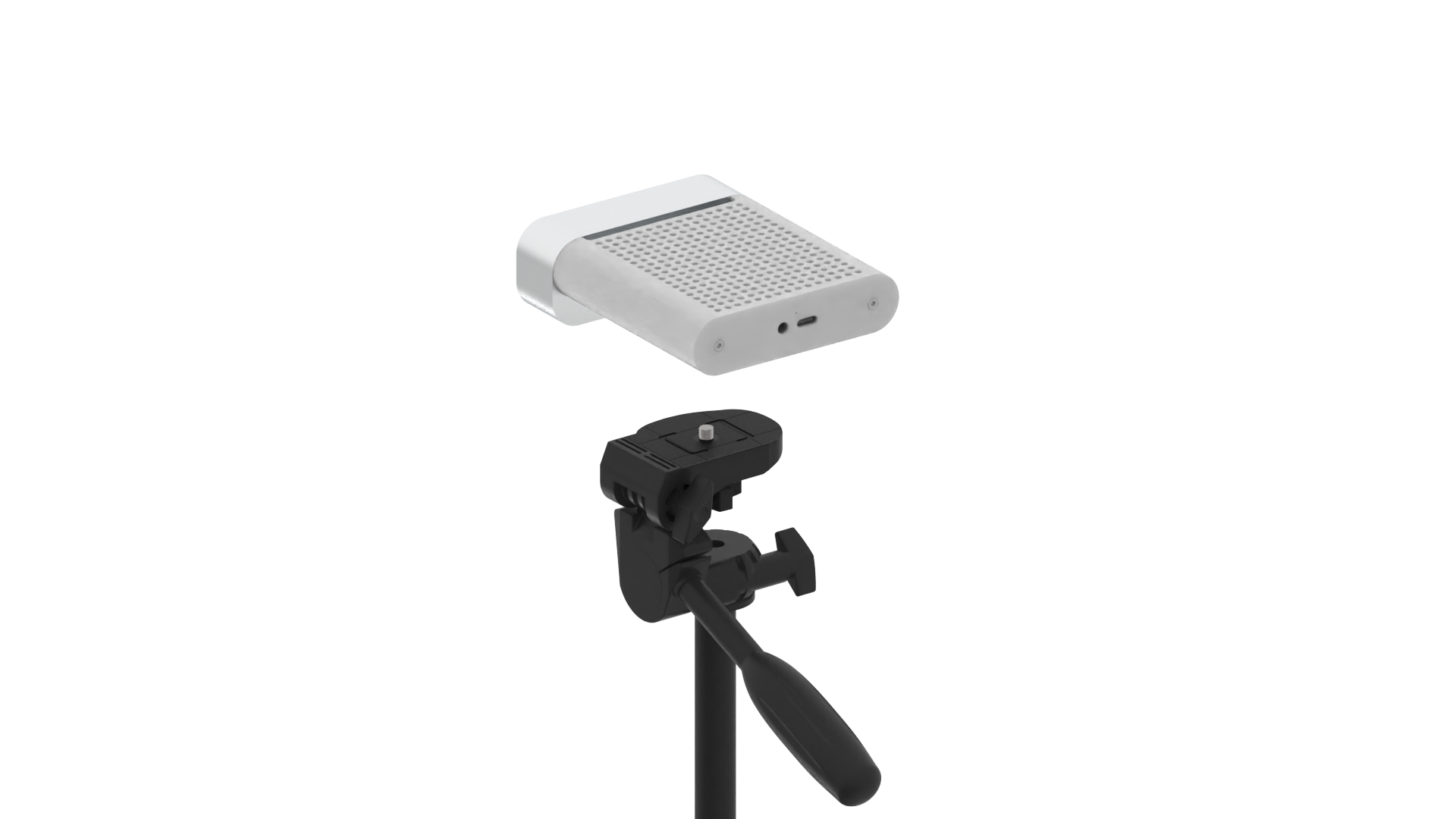

2	Mount the Azure Kinect by screwing the tripod base to the base of the camera (hole closest to the rear of the camera).

Putting it all together

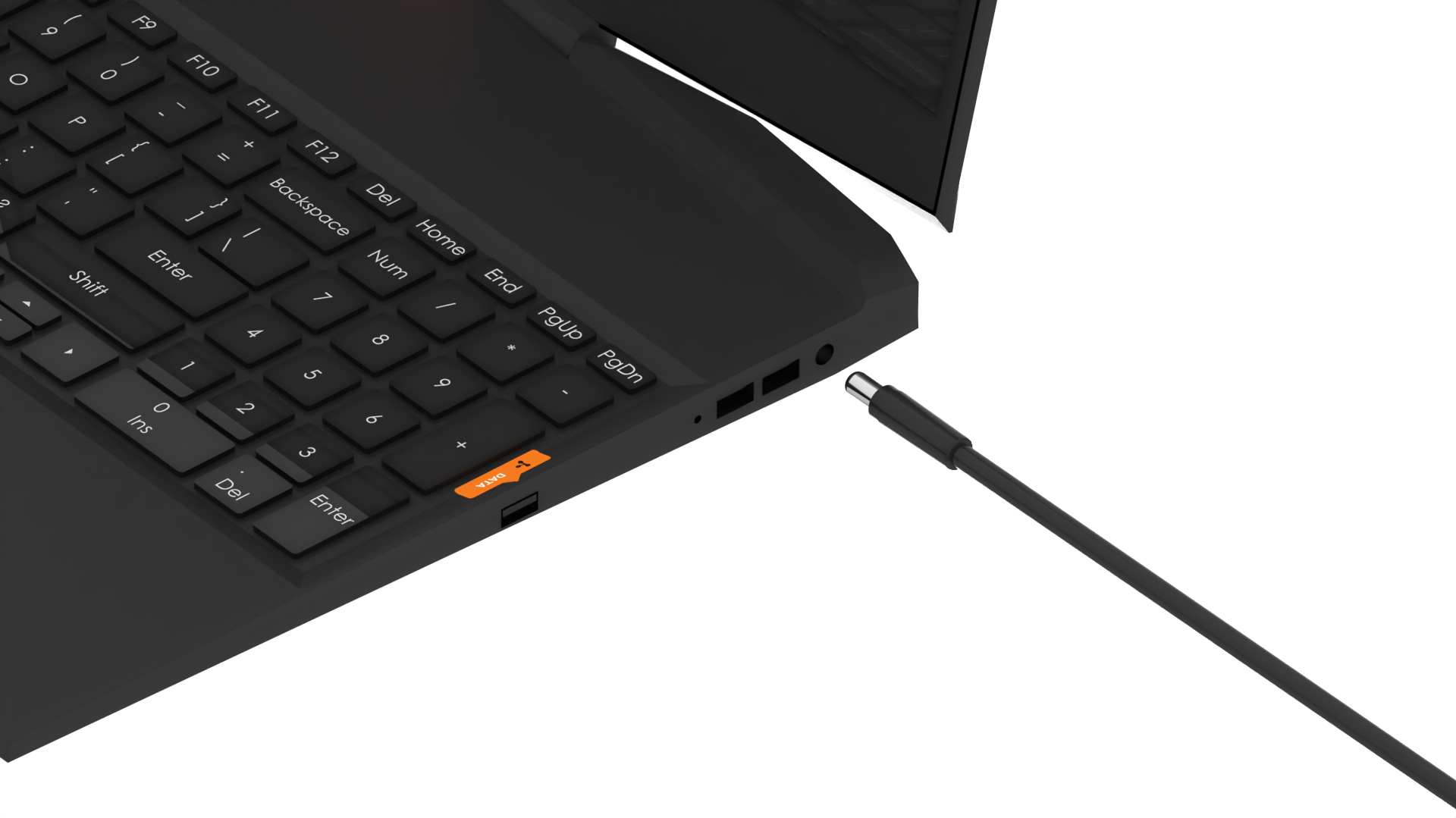

1	Connect the laptop's charger to a mains power outlet and then connect the charger to your HumanTrak laptop.

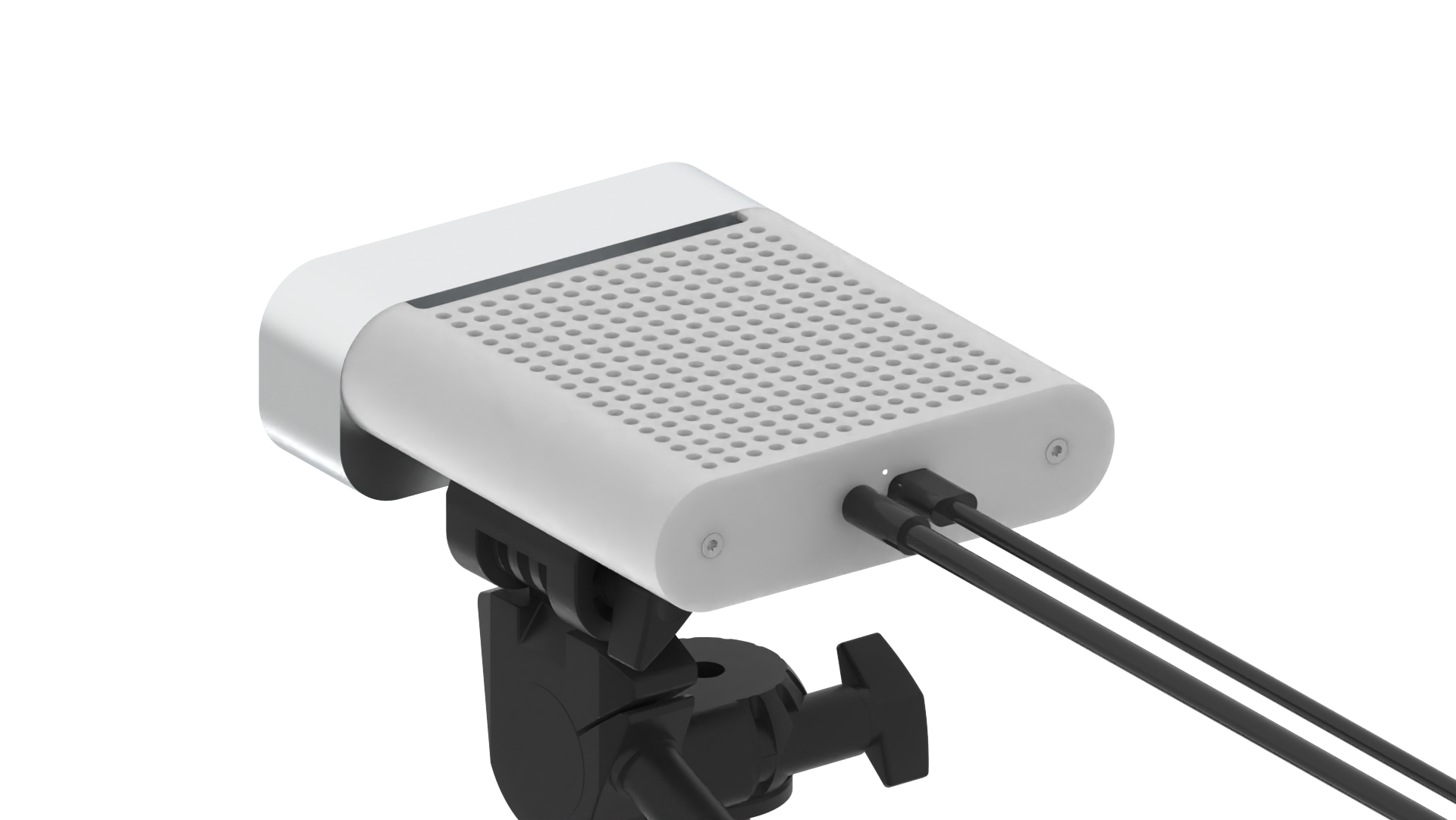

2	Plug the camera power cable into the power jack on the back of the Azure Kinect, then plug the USB end of the cable into a USB 3.0 port (blue port) on your HumanTrak laptop. Note: You may have received a single, combined camera data/power cable (USB-C) with your HumanTrak kit. If this is the case, both steps 2 and 3 are completed together.
3	Connect the camera data cable to the Azure Kinect, and then into a USB 3.0 port (blue port) on your HumanTrak laptop. Note:  For best results, connect the cable directly to the device and to the PC. Avoid using extensions or extra adapters in the connection.
4	Verify that the power indicator LED (next to the USB cable) is solid white. Device power-on takes a few seconds. The device is ready to use when the front-facing LED streaming indicator turns off.

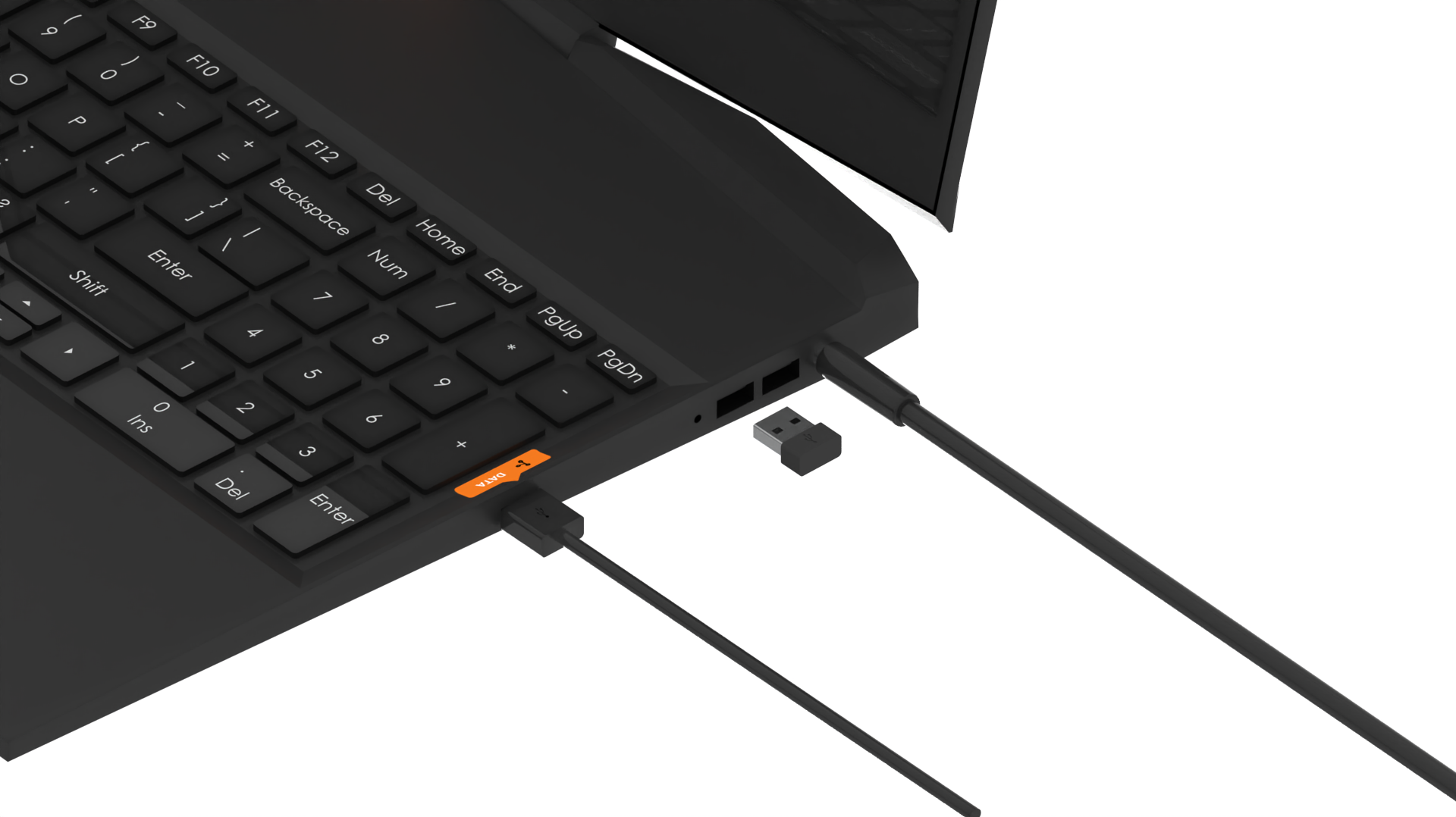

5	Plug the wireless keyboard USB dongle into a remaining USB port (black or blue). It should automatically pair with the keyboard. The keyboard's USB dongle can be found on the reverse-side of the battery cover.
