The following descriptions will help you to identify the model and version of your SmartSpeed timing units.
SmartSpeed Dash (BLE)
This is the most recent version of SmartSpeed dash timing units with updated BLE communication.
This version will have a serial number of SSD600800 or higher. It will also have a blue circle in the top right corner of the rear label.
SmartSpeed Dash (Legacy)
This is an older version of the SmartSpeed Dash timing units with legacy Bluetooth communication.
This version will have a serial number lower than SSD600800 or starting with PT. It will not have a blue circle in the top right corner of the rear label.
Both units must have the latest firmware when using a Legacy Dash unit with a BLE Dash unit.
Click here for instructions to update the firmware.

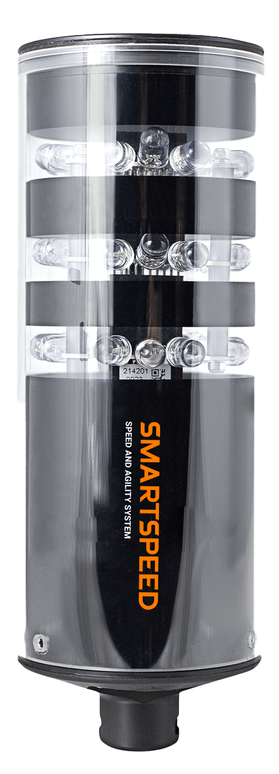

SmartSpeed Pro V2.1
This is the most recent version of SmartSpeed Pro timing units.
Look carefully through the clear decal above the warning label βWARNING_SUPERBRIGHT LIGHT SOURCEβ to find βV2.1β printed on the black inside stem.
SmartSpeed Pro V2
To identify SmartSpeed Pro V2 look through the clear unit decal and find the black printed PCB boards.
Please note that this version has been discontinued due to a change in PCB board design and the charging circuit.
SmartSpeed Pro V1
SmartSpeed Pro V1 is easy to identify. The PCB boards inside the V1 units are printed green and can be found by looking through the clear decal.
Please note V1 has been discontinued.
