VALD Hub Charts

Display Charts in VALD Hub show the latest test results from NordBord, ForceFrame and ForceDecks systems.

Where relevant, users can hover over charts for more details and click through to individual profile summaries. Charts can also be customised to suit reporting requirements.

• Longitudinal Charts
• Relative Test Metrics Charts
• Comparison Charts

Longitudinal Charts

• Montoring Report
• ForceDecks Report
• NordBord Report
• ForceFrame Report

1. Go to Dashboard
2. Select the relevant report from the drop down menu:
   1. Monitoring Report
   2. ForceDecks Report
   3. NordBord Report
   4. ForceFrame Report



3. Scroll to Longitudinal Chart on report page
4. Click edit icon on chart
5. Select Test Types to display
6. Select Test Metrics to display
7. Set a Threshold
8. Click Save Chart

1. Go to Home
2. Scroll to Longitudinal Chart on Home page
3. Click the chevron on the chart
4. Select the relevant report from the drop down menu

1. Go to Profiles
2. Select the relevant profile, by clicking on the Profile name
3. Click Testing
4. Scroll to charts on profile testing page
5. Click Add Chart
6. Select Longitudinal
7. Select the system/s you wish to display on the Y-axis (Bars) and X-axis (Lines)
8. Select Test Types to display
9. Select Test Metrics to display
10. Set a Threshold

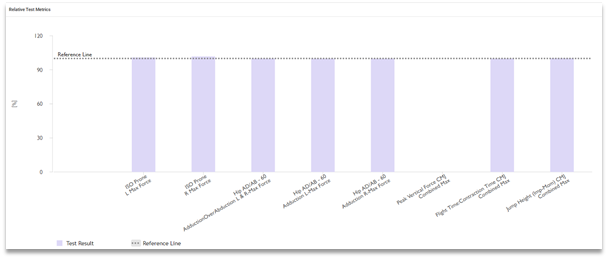

Relative Test Metrics Charts

• the selected group(s);
• as a percentage of the group(s) average;
• across a selected period.

• Montoring Report
• ForceDecks Report
• NordBord Report
• ForceFrame Report

Users can select the metrics that are displayed on Relative Test Metrics Charts, along with thresholds. Setting thresholds help to quickly identify which profiles are falling within and outside an ideal performance range.

1. Go to Dashboard
2. Select the relevant report from the drop down menu:
   1. Monitoring Report
   2. ForceDecks Report
   3. NordBord Report
   4. ForceFrame Report



3. Scroll to Relative Test Metrics on report page
4. Click edit icon on chart
5. Select Test Types to display
6. Select Test Metrics to display
7. Set a Threshold
8. Click Save Chart

1. Go to Profiles
2. Select the relevant profile, by clicking on the Profile name
3. Scroll to charts on profile page
4. Click Add Chart
5. Select Relative Metric
6. Select Test Types to display
7. Select Test Metrics to display
8. Set a Threshold
9. Click Save Chart

• Montoring Report
• ForceDecks Report
• NordBord Report
• ForceFrame Report

1. Go to Dashboard
2. Select the relevant report from the drop down menu:
   1. Monitoring Report
   2. ForceDecks Report
   3. NordBord Report
   4. ForceFrame Report



3. Scroll to Comparison Chart on report page
4. Click edit icon on chart
5. Select Test Types to display
6. Select Test Metrics to display
7. If applicable:
   1. Click to Show Rolling Average
   2. Click to Set Threshold



8. Click Save Chart Settings
